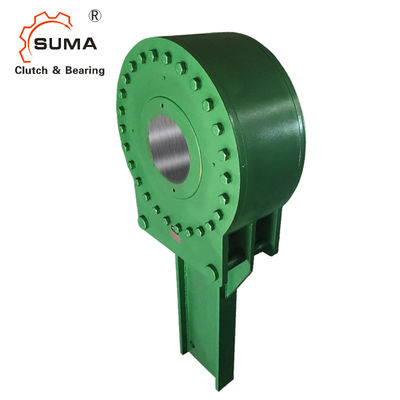

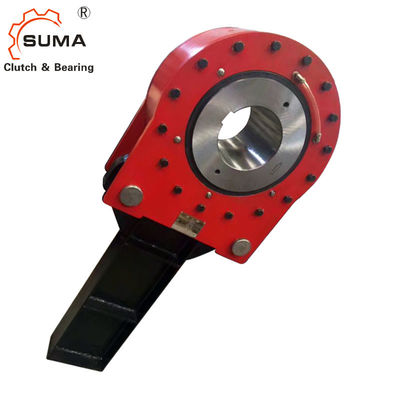

FRHD Backstop Clutch

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: FRHD800
Minimum Order Quantity: 1 PC
Price: USD1000-USD20000 PER PIECE
Packaging Details: Wooden Box
Delivery Time: 15-20 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability: 200 PCS PER MONTH
Product Name: Backstop Clutch Bearings FRHD800 Material: Bearing Steel GCr15
Bore Range: 4.5 Inch Outer Dia. Range: 10.5inch
Torque Range: 360 Lb-ft Package: Wooden Box
Warranty: 1 Year OEM: Accept
High Light:

FRHD Backstop Clutch

,

High Torque Backstop Clutch

,

FRHD Backstop Clutch Bearing

FRHD Backstop Clutch

Features

Complete Freewheels FRHD with lever arm are sealed sprag freewheels with ball bearings. They are supplied oil-filled and ready for installation. The freewheels are arranged on through shafts or shaft ends.

The freewheels FRHD are used as:
➧ Backstops
for low-speed applications. They are designed for use in inclined conveyor-belt systems, elevators and pumps. Taconite seals protect the backstops when conditions are dirty and dusty. Nominal torques up to 900 000 lb-ft. Bores up to 21 inch

Dimensions and Capacities



Freewheel

 Size

Maximum

torque

MM

lb-ft

Nominal

torque

MN

lb-ft

Maximum

speed

inner ring

freewheels

rpm

Bore

d max.

inch

A

inch

C

inch

D

inch

E

inch

H

inch

L

inch

O

inch

P

inch

Q

inch

Weight

lbs

FRHD 700 7500 3750 620 3.44 8 6 5.25 0.5 36 6 6.75 16.38 32 135
FRHD 775 15000 7500 540 3.75 9.75 8 6 1 42.88 7.5 9 20.38 38 310
FRHD 800 24000 12000 460 4.5 10.5 10 7 1 43.25 8 9.5 22.13 38 360
FRHD 900 37000 18500 400 5.44 12 10 8 1.5 54 7.63 9.38 22.75 48 480
FRHD 950 46000 23000 360 7 14 12 10 1.5 69 8 10 25 62 530
FRHD 1000 56000 28000 360 7 17 8 9 4.13 80.38 8.75 - 23.13 72 550
FRHD 1100 90000 45000 360 7 17 8 9 4.13 80.38 10 - 23.13 72 795
FRHD 1200 185000 92500 250 9 23 10 12 4.94 89 11 - 28 78 1300
FRHD 1300 220000 110000 220 10 25 12 14 5.25 95 12 - 30 82.88 1674
FRHD 1400 280000 140000 200 12 30 18 16 6.25 107 13 - 36 94 2200
FRHD 1450 380000 190000 200 12 30 18 16 6.25 107 15 - 36 94 2500
FRHD 1500 580000 290000 200 12 31 18 15.1 6.25 107 17.6 - 36 94 2440
FRHD 1600 746000 373000 140 14 32.5 20 17.6 6.25 124 19.3 - 30.44 108 3400
FRHD 1700 1250000 625000 120 18 42.5 24.5 23 7.88 140 20 - 48 120 7000
FRHD 1800 1800000 900000 100 21 52 30 26.5 10.5 170 23 - 54 144 12000



Mounting and Coupling


Pictures

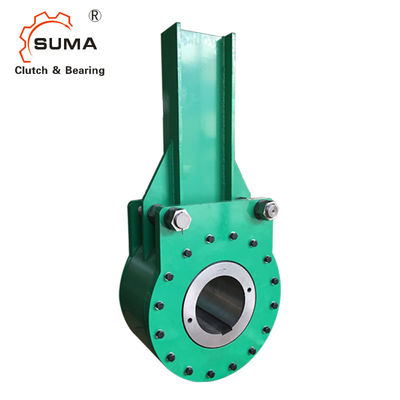

FRHD Backstop Clutch 3

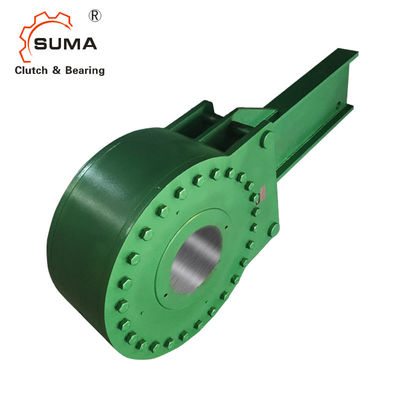

FRHD Backstop Clutch 4
