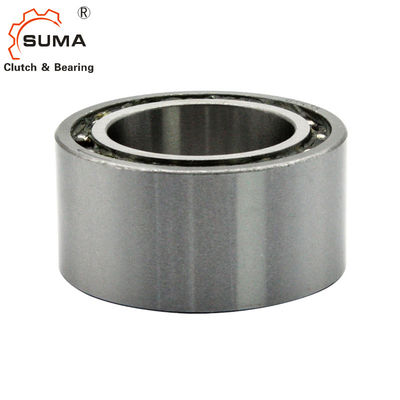

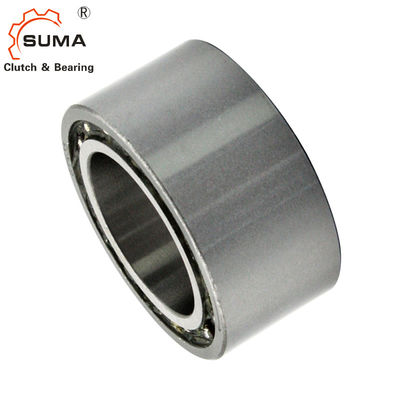

Name: GFK20 FGK20 51Nm Freewheel One Way Clutch Bearing
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: GFK20 FGK20
Price: 37.00 USD
Availability: InStock

Home Products One Way Clutch Bearing

GFK20 FGK20 51Nm Freewheel One Way Clutch Bearing

Product Details:

Place of Origin:	CHINA
Brand Name:	SUMA
Certification:	ISO SGS
Model Number:	GFK20 FGK20

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD35-USD40 PER PIECE
Packaging Details:	Carton Box
Delivery Time:	10-15 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability:	1000PCS Per Month

Contact Now

Detailed Product Description

Product Name:	One Way Clutch Bearing GFK20 FGK20	Material:	GCr15 Bearing Steel
Torque Capacity:	51Nm	Rotation Speed:	5500RPM
Unit Weight:	0.09Kg	Warranty:	1 Year
Size:	203723mm	OEM:	Accept
MOQ:	5-
Highlight:	5Nm One Way Clutch Bearing , GFK One Way Clutch Bearing , Freewheel Clutch One Way

GFK20 FGK20 51Nm Freewheel One Way Clutch Bearing

Features

GFK20 Overrunning Clutch Can be used as :

1.overrunning clutch

2.backstop clutch

3.indexing clutch

Technical Datas

Item	GFK20 overrunning clutch
Brand	SUMA
Type	Sprag
Type of support	bearing support
Bore Dia. (mm)	20
Torque (Nm)	51
Inner race overrunning speed (min-1)	5500
Outer race overrunning speed (min-1)	4000
Weight(kgs)	0.09

Dimensions and Capacities

Type	Size	T_KN¹⁾	Overrunningspeeds		Bearing series	Loads
Type	Size		Overrunningspeeds			Rollers dyn.	Balls dyn.	Rollers stat.	Balls stat.
GFK	d		n _imax²⁾	n _amax³⁾		C	C	C₀	C₀	D	L	r
	[mm]	[Nm]	[min^-1]	[min^-1]		[N]	[N]	[N]	[N]	[mm]	[mm]	[mm]	[kg]
	20	51	5500	4000	5904	5600	4400	2900	2750	37	23	0.5	0.09
	25	65	5300	3800	5905	6300	5300	3450	3350	42	23	0.5	0.11
	30	95	5000	3500	5906	7700	5500	4600	3650	47	23	0.5	0.13
	35	204	4600	3200	5907	8200	8500	5200	5700	55	27	1	0.2
	40	315	4200	3000	5908	8650	9300	5750	6700	62	30	1	0.3
	45	370	3800	2500	5909	9200	9700	6350	7300	68	30	1	0.34
	50	460	3400	2200	5910	9650	10000	6950	7800	72	30	1	0.36
