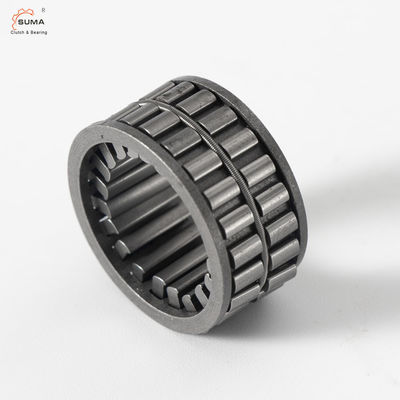

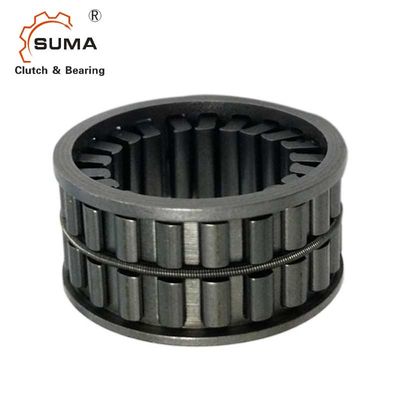

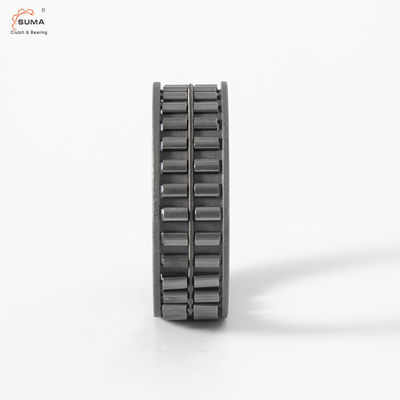

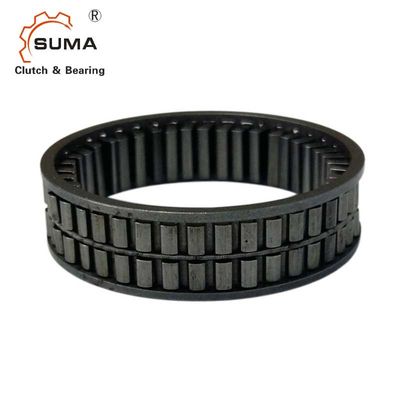

FE463Z 55*63*11mm Cage Rotation One Way Clutch Bearing

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: FE463Z
Minimum Order Quantity: 1
Price: USD7-USD10 PER PIECE
Packaging Details: Carton Box
Delivery Time: 3-7 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: Sprag Freewheel Cage FE463Z Material: GCr15 Bearing Steel
Torque Capacity: 393Nm Rotation Speed: 2900RPM
Size: 55*63*11mm OEM: Accept
High Light:

Cage One Way Clutch Bearing

,

FE463Z One Way Clutch Bearing

,

FE463Z one way rotation bearing

           FE463Z 55*63*11mm Sprag Freewheel Cage One Way Clutch Bearings

Features



  1. The FE stated speed and torque ratings are contingent on utilizing specified tolerances, correct installation techniques, and operating temperature and load conditions below the specified maximums.
  2. The FE stated RPM value is for the maximum freewheel rotational speed for the sprags, not the shaft or housing. High freewheel rotational speeds can produce centrifugal forces that can cause the sprags to lift off from frictional contact, therefore creating an opportunity for improper engagement and potential slip. The sprag RPM must be below the listed value before engagement occurs. The actual sprag freewheel speed is difficult to determine because the sprags are driven by frictional forces from the race(s) and lubrication. Theoretically there is no maximum rotational speed in the driving direction; the inner race, sprags, and outer race rotate as one unit unaffected by centrifugal forces.
  3. The FE stated temperature rating is for an injection molded cage.
  4. The maximum temperature rating is 170°C for a steel cage.
  5. Effective hardness depth, equivalent to case hardness depth (CHD).



Technical Parameter


FE463Z 55*63*11mm Cage Rotation One Way Clutch Bearing 0

Drawing legend:

d = inner diameter D = outer diameter W = width T = torque n = rotation speed

Designation

d

[mm]

D

[mm]

W

[mm]

Tnom

[Nm]

nmax

[rpm]

Weight

[kg]

Item no.
FE 412 Z 4 12 12 4 27,000 0.003 300393
FE 416 Z 8 16 12 16 19,200 0.006 300400
FE 420 Z 12 20 12 35 12,500 0.007 306041
FE 422 Z 14 22 12 53 10,100 0.008 300405
FE 423 Z 15 23 12 62 9,200 0.009 300411
FE 425 Z 17 25 12 72 8,100 0.011 300415
FE 427 Z 19 27 12 83 7,400 0.013 300422
FE 428 Z 20 28 12 93 7,500 0.013 300430
FE 430 Z 22 30 12 107 6,300 0.014 300435
FE 432 Z 24 32 12 117 5,900 0.016 300439
FE 433 Z 25 33 12 128 6,000 0.016 300445
FE 435 Z 27 35 12 143 5,100 0.017 300448
FE 437 Z 29 37 12 154 4,800 0.018 300455
FE 438 Z 30 38 12 166 4,900 0.019 300460
FE 442 Z 34 42 12 198 4,400 0.018 300463
FE 443 Z 35 43 12 207 4,300 0.022 300469
FE 448 Z 40 48 12 248 4,200 0.024 300478
FE 453 Z 45 53 12 293 3,400 0.022 300482
FE 455 Z 47 55 12 313 3,300 0.026 300487
FE 458 Z 50 58 12 344 3,100 0.029 300489
FE 459 Z 51 59 12 353 3,000 0.030 300494
FE 463 Z 55 63 12 393 2,900 0.032 300497
FE 468 Z 60 68 12 444 2,700 0.034 300501
FE 470 Z 62 70 12 465 2,600 0.035 300505
FE 473 Z 65 73 12 495 2,500 0.037 300508
FE 478 Z 70 78 12 548 2,600 0.039 300511
FE488Z 80 88 12 657 2,100 0.045 300514
FE 508 Z 100 108 12 889 1,700 0.055 300519
FE 528 Z 120 128 12 1,127 1,300 0.066 300522
FE 648 Z 240 248 12 2,673 800 0.131 300524




















































































































FE463Z 55*63*11mm Cage Rotation One Way Clutch Bearing 1FE463Z 55*63*11mm Cage Rotation One Way Clutch Bearing 2
