Name: CSK40 CSK40P CSK40PP CSK40-2RS One Way Clutch Bearings
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: CSK40 CSK40P CSK40PP CSK40-2RS
Price: 8.00 USD
Availability: InStock

Home Products One Way Clutch Bearing

CSK40 CSK40P CSK40PP CSK40-2RS One Way Clutch Bearings

Product Details:

Place of Origin:	CHINA
Brand Name:	SUMA
Certification:	ISO
Model Number:	CSK40 CSK40P CSK40PP CSK40-2RS

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD7-USD10PER PIECE
Packaging Details:	White Box + Carton Box + Wooden Pallet
Delivery Time:	3-5 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability:	20000PCS PER WEEK

Contact Now

Detailed Product Description

Material:	Gcr15 Bearing Steel	Torque Capacity:	325Nm
Rotation Speed:	3000 RPM	Drag Torque:	7Ncm
Unit Weight:	0.5KG	Package:	White Box + Carton Box
OEM:	Accept	Delivery Time:	2-3 Days
MOQ:	5-
Highlight:	CSK40PP One Way Clutch Bearings , CSK40 One Way Clutch Bearings , CSK40PP Bearing

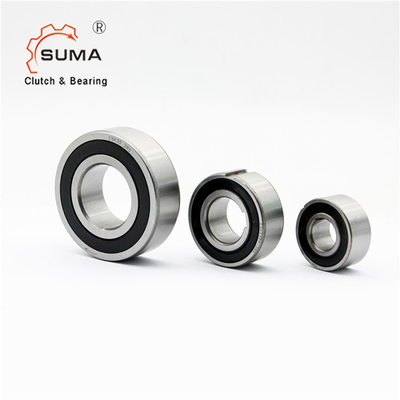

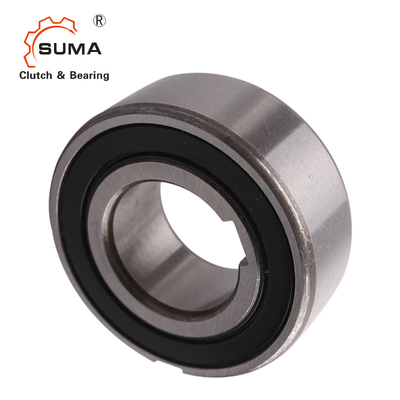

CSK40 CSK40P CSK40PP CSK40-2RS One Way Clutch Bearings

Fearures

Item: CSK40PP-2RS Bearing
Type: One-Way Clutch Bearing
Bearing Inner Diameter: 40mm
Bearing Outer Diameter: 80mm
Bearing Width: 27mm
CSK40 / CSK40P / CSK40PP Size: 40*80*22mm

Types CSK and CSK...2RS are sprag type freewheels integrated into 62.. series ball bearings (except size 40).

They are bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm.

In addition to the basic CSK model, type CSK..P features a keyway on the inner race.

For this reason it can be keyed to a shaft to k6 tolerance. The outer race must still be pressed into a rigid housing to N6 tolerance.

CSK..PP features a keyway on both the inner and outer race.

The recommended mounting tolerances are h6 on the shaft and H6 in a rigid housing.

Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C.

Dimensions and Capacities

CSK40 CSK40P CSK40PP CSK40-2RS One Way Clutch Bearings 0

Type	Size	Bearing series	DIMENSION						Bearing loads		Weight	Drag torque
Type	Size	Bearing series	DIMENSION						dynamic	static		Drag torque
CSK..P	d		TKN1)	nmax	D	L	b	t	C	C0		TR
	[mm]		[Nm]	[min-1]	[mm]	[mm]	[mm]	[mm]	[kN]	[kN]	[kg]	[Ncm]
	12	6201	9.3	10000	32	10			6.1	2.77	0.04	0.7
	15	6202	17	8400	35	11			7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12			7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14			9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15			10.7	5.46	0.14	2
	30	6206	138	4200	62	16			11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17			12.6	7.28	0.3	5.8
	40	–	325	3000	80	22			15.54	12.25	0.5	7
CSK..PP	15	6202	17	8400	35	11	2	0.6	7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12	2	1	7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14	3	1.5	9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15	6	2	10.7	5.46	0.14	2
	30	6206	138	4200	62	16	6	2	11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17	8	2.5	12.6	7.28	0.3	5.8
	40	–	325	3000	80	22	10	3	15.54	12.25	0.5	7
CSK..P-2RS	12	–	9.3	10000	32	14			6.1	2.77	0.05	3
	15	–	17	8400	35	16			7.4	3.42	0.07	4
	17	–	30	7350	40	17			7.9	3.8	0.09	5.6
	20	–	50	6000	47	19			9.4	4.46	0.145	6
	25	–	85	5200	52	20			10.7	5.46	0.175	6
	30	–	138	4200	62	21			11.7	6.45	0.27	7.5
	35	–	175	3600	72	22			12.6	7.28	0.4	8.2
	40	–	325	3000	80	27			15.54	12.25	0.6	10
