| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SUMA |
| Certification: | ISO SGS |
| Model Number: | CFH-1 7/8-B |
| Minimum Order Quantity: | 10PCS |
| Price: | USD2.5-USD3.2 PER PIECE |
| Packaging Details: | Carton Box / Wooden Box |
| Delivery Time: | 2-5 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union,Paypal |
| Supply Ability: | 100000 PCS PER MONTH |
| Product Name: | Stud Type Cam Follower Bearings CFH-1 7/8-B | Material: | Bearing Steel GCr15 |
|---|---|---|---|
| Outer Race Surface: | Cylindrical | Package: | Each In Plastic Bag + Carton Box |
| Warranty: | 6 Months | Port: | ShangHai / NingBo |
| OEM: | Accept | Delivery Time: | 3-5 Days |
| High Light: | CFH-1 Stud Track Roller,Metallurgical Stud Track Roller,GCr15 Stud Cam Follower |
||
CFH-1 7/8-B Sealed Stud Track Roller Cam Follower Bearings
Features
It can bear high radial load and certain shock load and is widely used in machine tool, metallurgical, textile and printing machinery, processing lines and etc.
Composition: machined thick-wall outer ring, needle rollers or cylindrical roller sets, or cage guidance or full complement needle roller, inner ring or bolt and seal.
Featuring: multiple compact structure, high rotating accuracy, large varieties, broad adaptability and easy installation.
Dimensions and Capacities
| UNSEALED BRG. NO. |
SEALED BRG. NO. |
ROL LER |
ROL LER |
STUD DIA (SD) |
STUD GTH |
MIN. EAD GTH |
FINE EAD |
OIL HOLE | LUB FITTING SIZE (F) |
RRCOM. CL AMPING TORQUE LBS. IN |
|
|
HOLE TER |
HOLE (HD) |
||||||||||
| CFH-1/2-B | CFH-1/2-B | 0.500 | 0.375 | 0.250 | 5/8 | 1/4 | 1/4-28 | 35 | |||
| CFH-9/16-B | CFH-9/16-B | 0.5625 | 0.375 | 0.250 | 5/8 | 1/4 | 1/4-28 | 35 | |||
| CFH-5/8-B | CFH-5/8-B | 0.625 | 0.4375 | 0.3125 | 3/4 | 5/16 | 5/16-24 | 90 | |||
| CFH-11/16-B | CFH-11/16-B | 0.6875 | 0.4375 | 0.3125 | 3/4 | 5/16 | 5/16-24 | 90 | |||
| CFH-3/4-B | CFH-3/4-B | 0.750 | 0.500 | 0.4375 | 7/8 | 3/8 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 |
| CFH-7/8-B | CFH-7/8-B | 0.875 | 0.500 | 0.4375 | 7/8 | 3/8 | 7/16-20 | 1/4 | 3/32 | 3/16 | 250 |
| CFH-1-B | CFH-1-B | 1.000 | 0.625 | 0.625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 |
| CFH-1 1/8-B | CFH-1 1/8-B | 1.1250 | 0.625 | 0.625 | 1 | 1/2 | 5/8-18 | 1/4 | 3/32 | 3/16 | 650 |
| CFH-1 1/4-B | CFH-1 1/4-B | 1.250 | 0.750 | 0.750 | 1 1/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | 3/16 | 1250 |
| CFH-1 3/8-B | CFH-1 3/8-B | 1.375 | 0.750 | 0.750 | 1 1/4 | 5/8 | 3/4-16 | 5/16 | 3/32 | 3/16 | 1250 |
| CFH-1 1/2-B | CFH-1 1/2-B | 1.500 | 0.875 | 0.875 | 1 1/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 |
| CFH-1 5/8-B | CFH-1 5/8-B | 1.625 | 0.875 | 0.875 | 1 1/2 | 3/4 | 7/8-14 | 3/8 | 3/32 | 3/16 | 1500 |
| CFH-1 3/4-B | CFH-1 3/4-B | 1.750 | 1.000 | 1.000 | 1 3/4 | 7/8 | 1-14 | 7/16 | 3/32 | 3/16 | 2250 |
| CFH-1 7/8-B | CFH-1 7/8-B | 1.875 | 1.000 | 1.000 | 1 3/4 | 7/8 | 1-14 | 7/16 | 3/32 | 3/16 | 2250 |
| CFH-2-B | CFH-2-B | 2.000 | 1.125 | 1.125 | 2 | 1 | 1 1/8-12 | 1/2 | 1/8 | 3/16 | 2800 |
| CFH-2 1/4-B | CFH-2 1/4-B | 2.250 | 1.125 | 1.125 | 2 | 1 | 1 1/8-12 | 1/2 | 1/8 | 3/16 | 2800 |
| CFH-2 1/2-B | CFH-2 1/2-B | 2.500 | 1.250 | 1.250 | 2 1/4 | 1 1/8 | 1 1/4-12 | 9/16 | 1/8 | 3/16 | 3450 |
| CFH-2 3/4-B | CFH-2 3/4-B | 2.750 | 1.250 | 1.250 | 2 1/4 | 1 1/8 | 1 1/4-12 | 9/16 | 1/8 | 3/16 | 3450 |
| CFH-3-B | CFH-3-B | 3.000 | 1.500 | 1.500 | 2 1/2 | 1 1/4 | 1 1/2-12 | 5/8 | 1/8 | 1/4 | 5000 |
| CFH-3 1/4-B | CFH-3 1/4-B | 3.250 | 1.500 | 1.500 | 2 1/2 | 1 1/4 | 1 1/2-12 | 5/8 | 1/8 | 1/4 | 5000 |
| CFH-3 1/2-B | CFH-3 1/2-B | 3.500 | 1.750 | 1.750 | 2 3/4 | 1 3/8 | 1 3/4-12 | 11/16 | 1/8 | 1/4 | 5000 |
| CFH-4-B | CFH-4-B | 4.000 | 2.000 | 2.000 | 3 1/2 | 1 1/2 | 2-12 | 3/4 | 1/8 | 1/4 | 5000 |
Technical Datas
| Product name | CFH-1 7/8-B Stud Type Track Roller |
| Model | CFH-1 7/8-B |
| Material | GCr15 |
| Package | Carton Box / Wooden box, pulley, etc |
| Payment terms | TT. L/C, D/A,D/P,Western Union |
| Delivery time | 2-4 days for the sample, 7 days for big order |

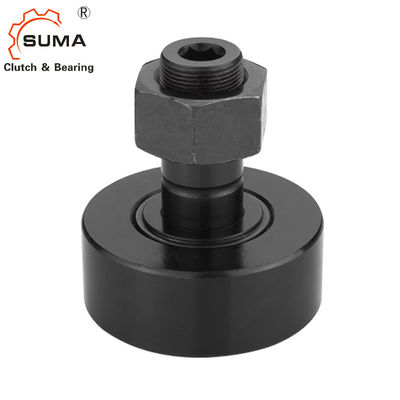

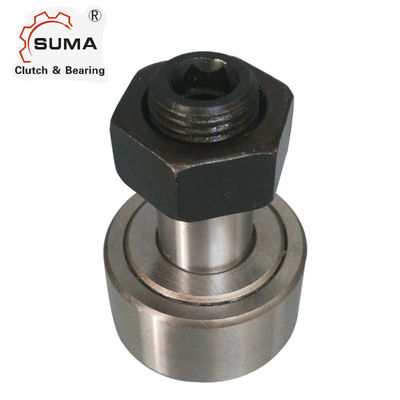

Pictures
