Name: CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: CCFH-3/4-SB
Price: 4.00 USD
Availability: InStock

Home Products Stud Type Cam Follower

CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB

Product Details:

Place of Origin:	CHINA
Brand Name:	SUMA
Certification:	ISO SGS
Model Number:	CCFH-3/4-SB

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	USD3-USD5 PER PIECE
Packaging Details:	Carton Box / Wooden Box
Delivery Time:	2-5 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability:	100000 PCS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Heavy Duty Cam Follower CCFH-3/4-SB	Material:	Bearing Steel GCr15
Outer Race Surface:	Crowned	Package:	Each In Plastic Bag + Carton Box
Warranty:	6 Months	Port:	ShangHai / NingBo
OEM:	Accept	Delivery Time:	2-3Days
Highlight:	Crowned Heavy Duty Cam Follower , CCFH-S Heavy Duty Cam Follower , SGS Stud Type Cam Follower

CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB

Features of Heavy Duty Cam Follower

CCFH-1-B Crowned With Hex Hole Heavy duty cam follower
CCFH-1-SB Crowned Seald and Hex Hole Heavy duty cam follower

The typical functions of a cam follower are to provide anti-friction support of linear movement or to follow the surface of a cam.

SUMA Stud Cam Follower was designed to withstand the intermittent shock, loading and precision requirements associated with these applications.
Technical Datas of Heavy Duty Cam Follower

CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB 0

INSEALED BRG. NO.	ROLLER DIA (RD)	ROLLER WIDTH (W)	STUD DIA (SD)	STUD LENGTH (SL)	MIN. THREAD LENGTH (TL)	FINE THREAD	OIL HOLE		LUS FITTING SIZE (F)	RRCOM. CL AMPING TORQUE LSS. IN	MAX STATIC CAPACITY LSS.	SASIC DYN. RATING LSS.
INSEALED BRG. NO.	ROLLER DIA (RD)	ROLLER WIDTH (W)	STUD DIA (SD)	STUD LENGTH (SL)	MIN. THREAD LENGTH (TL)	FINE THREAD	HOLE CENTER (HC)	HOLE DIA(HD)	LUS FITTING SIZE (F)	RRCOM. CL AMPING TORQUE LSS. IN	MAX STATIC CAPACITY LSS.	SASIC DYN. RATING LSS.
CCFH-1/2-S	0.500	0.375	0.250	5/8	1/4	1/4-28				35	1580	680
CCFH-9/16-S	0.5625	0.375	0.250	5/8	1/4	1/4-28				35	1580	680
CCFH-5/8-S	0.625	0.4375	0.3125	3/4	5/16	5/16-24				90	2480	955
CCFH-11/16-S	0.6875	0.4375	0.3125	3/4	5/16	5/16-24				90	2480	955
CCFH-3/4-S	0.750	0.500	0.4375	7/8	3/8	7/16-20	1/4	3/32	3/16	250	4130	1660
CCFH-7/8-S	0.875	0.500	0.4375	7/8	3/8	7/16-20	1/4	3/32	3/16	250	4130	1660
CCFH-1-S	1.000	0.625	0.625	1	1/2	5/8-18	1/4	3/32	3/16	650	6120	2225
CCFH-1 1/8-S	1.1250	0.625	0.625	1	1/2	5/8-18	1/4	3/32	3/16	650	6120	2225
CCFH-1 1/4-S	1.250	0.750	0.750	1 1/4	5/8	3/4-16	5/16	3/32	3/16	1250	8500	3930
CCFH-1 3/8-S	1.375	0.750	0.750	1 1/4	5/8	3/4-16	5/16	3/32	3/16	1250	8500	3930
CCFH-1 1/2-S	1.500	0.875	0.875	1 1/2	3/4	7/8-14	3/8	3/32	3/16	1500	11280	4840
CCFH-1 5/8-S	1.625	0.875	0.875	1 1/2	3/4	7/8-14	3/8	3/32	3/16	1500	11280	4840
CCFH-1 3/4-S	1.750	1.000	1.000	1 3/4	7/8	1-14	7/16	3/32	3/16	2250	15840	6385
CCFH-1 7/8-S	1.875	1.000	1.000	1 3/4	7/8	1-14	7/16	3/32	3/16	2250	15840	6385
CCFH-2-S	2.000	1.125	1.125	2	1	1 1/8-12	1/2	1/8	3/16	2800	21140	8090
CCFH-2 1/4-S	2.250	1.125	1.125	2	1	1 1/8-12	1/2	1/8	3/16	2800	21140	8090
CCFH-2 1/2-S	2.500	1.250	1.250	2 1/4	1 1/8	1 1/4-12	9/16	1/8	3/16	3450	32900	11720
CCFH-2 3/4-S	2.750	1.250	1.250	2 1/4	1 1/8	1 1/4-12	9/16	1/8	3/16	3450	32900	11720
CCFH-3-S	3.000	1.500	1.500	2 1/2	1 1/4	1 1/2-12	5/8	1/8	1/4	5000	49820	15720
CCFH-3 1/4-S	3.250	1.500	1.500	2 1/2	1 1/4	1 1/2-12	5/8	1/8	1/4	5000	49820	15720
CCFH-3 1/2-S	3.500	1.750	1.750	2 3/4	1 3/8	1 3/4-12	11/16	1/8	1/4	5000	63250	22800
CCFH-4-S	4.000	2.000	2.000	3 1/2	1 1/2	2-12	3/4	1/8	1/4	5000	89540	29985

Application of Heavy Duty Cam Follower

Food and Beverage	Packaging equipment	Unit material handling
Auto Plants	Oil Drilling	Steel Mills
Texitiles / Printing	Automation equipment	Machine Tools

Pictures of Heavy Duty Cam Follower

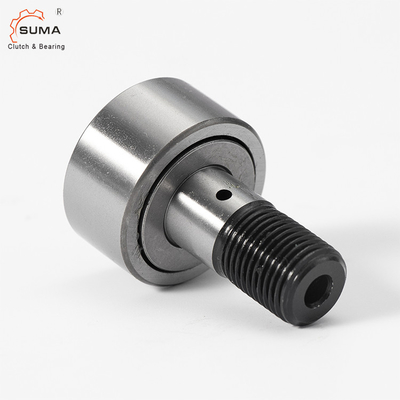

CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB 1

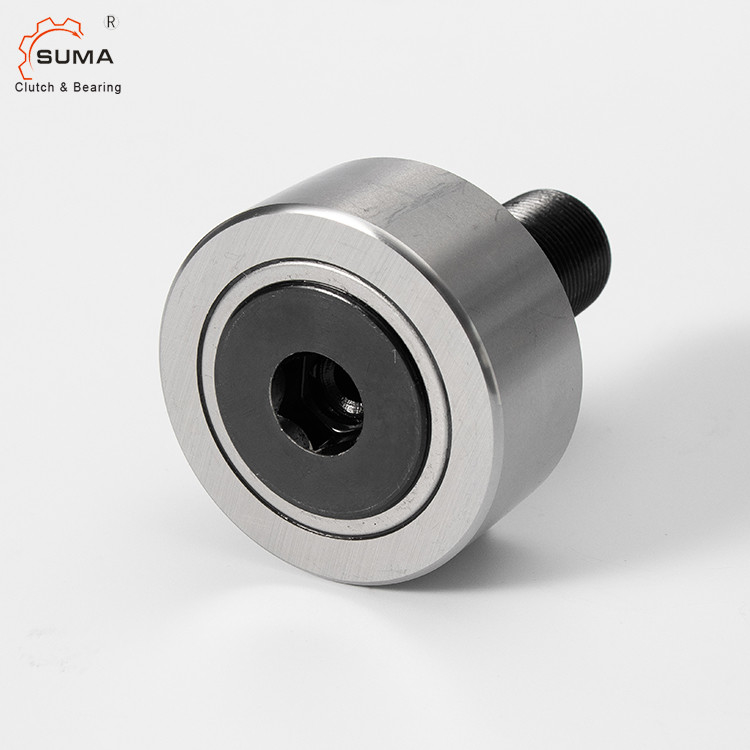

CCFH-S CCFH-SB Series Crowned Heavy Duty Cam Follower CCFH-3/4-SB 2

FAQ

Q: How do you pack the cam follower ?

Total less than 25 KG : Each in plastic bag + 29*28*19CM carton box
Total Weight over 100KG : Each in plastic bag + 29*28*19CM carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?
