ASNU200 NFS200 USNU200 44500Nm No Bearing Supported One Way Roller Clutch Bearings

Basic Information
Place of Origin: CHINA
Brand Name: SUMA
Certification: ISO SGS
Model Number: ASNU200 NFS200 USNU200
Minimum Order Quantity: 1
Price: USD650-USD750 PER PIECE
Packaging Details: Wooden Box
Delivery Time: 15 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability: 1000PCS Per Month
Product Name: One Way Clutch Bearing ASNU200 Material: GCr15 Bearing Steel
Torque Capacity: 44500Nm Rotation Speed: 230RPM
Unit Weight: 93Kg Warranty: 1 Year
Size: 200*420*138mm OEM: Accept
High Light:

USNU200 One Way Clutch Bearing

,

44500Nm One Way Clutch Bearing

,

USNU200 backstop clutch bearing

           ASNU200 NFS200 USNU200 44500Nm No Bearing Supported

One Way Roller Clutch Bearings

Features

  ASNU NFS USNU is a roller type freewheel non-bearing supported. Bearing are supporte axil and radial load. Lubrication and sealing must be also provided by installation.

Since ASNU NFS type one way clutch is a roller type without bearing supported, bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. The inner race is keyed to the shaft. The outer race has positive n6 tolerance, to give a press fitin a H7 housing.

Technical Datas

Product name                 One Way Clutch Bearing
Model ASNU200 NFS200 USNU200
Material Chrome steel GCr15
Inner diameter 300mm
Outer diameter 420mm
Torque capacity 44500Nm
Weight 93kg
Package Wooden box
Payment terms TT. L/C, D/A,D/P,Western Union
Delivery time 15 Days

Dimensions and Capacities


Type Size



TKN1)

Overrunning

Speeds



Weight



Drag torque

ASNU

(NFS)

dH7 nimax2) namax3) Dn6 D5 L b t s e f TR
[mm] [Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [Ncm]
8 12 3300 5000 35 28 13 4 1.4 2.4 0.6 0.3 0.07 1.6
12 12 3300 5000 35 28 13 4 1.4 2.4 0.6 0.3 0.06 1.6
15 30 2400 3600 42 37 18 5 1.8 2.4 0.8 0.3 0.11 1.9
17 49 2300 3400 47 40 19 5 2.3 2.4 1.2 0.8 0.15 1.9
20 78 2100 3100 52 42 21 6 2.3 2.4 1.2 0.8 0.19 1.9
25 125 1700 2600 62 51 24 8 2.8 2.4 1.2 0.8 0.38 5.6
30 255 1400 2200 72 60 27 10 2.5 2.4 1.8 1 0.54 14
35 383 1200 1900 80 70 31 12 3.5 2.4 1.8 1 0.74 16
40 538 1100 1700 90 78 33 12 4.1 2.5 1.8 1 0.92 38
45 780 1000 1600 100 85 36 14 4.6 2.5 1.8 1 1.31 43
50 1013 850 1350 110 92 40 14 5.6 2.5 1.8 1 1.74 55
60 1825 750 1050 130 110 46 18 5.5 3.6 2.6 1.5 2.77 110
70 2300 600 950 150 125 51 20 6.9 3.6 2.6 1.5 4.16 140
80 3275 550 850 170 140 58 20 7.5 3.6 2.6 1.5 6.09 180
90 5325 500 750 190 160 64 20 8 3.6 2.6 2 8.2 230
100 7250 450 680 215 175 73 24 8.5 3.6 2.6 2 12.6 380
120 13500 370 550 260 215 86 28 10 3.6 2.6 2.5 22 650
150 26625 300 460 320 260 108 32 12 3.6 3.6 2.5 42 1000
200 44500 230 350 420 350 138 45 16 7.6 3.6 3 93 2000



NOTES

ASNU8-12, ASNU200 keyway to DIN 6885. 1,

other sizes to DIN 6885.3
1) T max = 2 × T KN
2) Inner race overruns
3) Outer race overruns

Mounting Example


Pictures

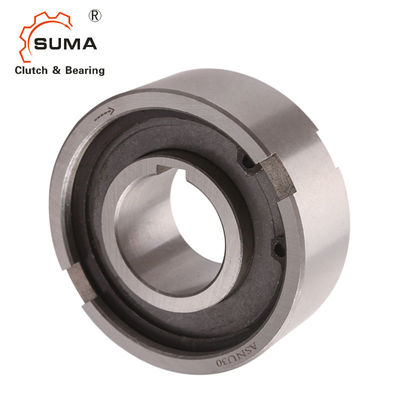

ASNU200 NFS200 USNU200 44500Nm No Bearing Supported  One Way Roller Clutch Bearings 2

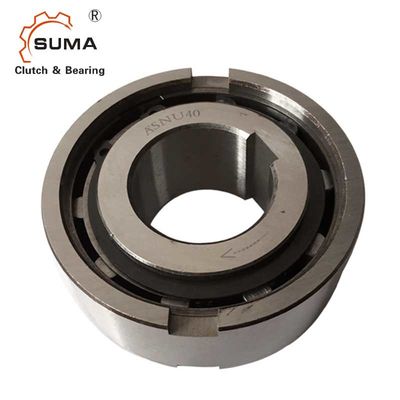

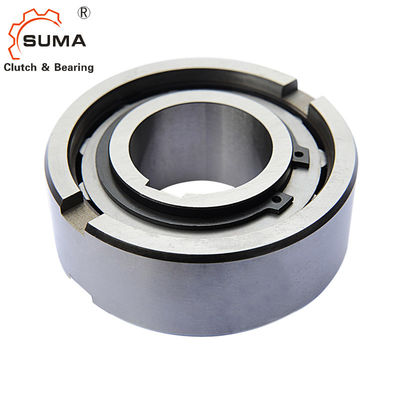

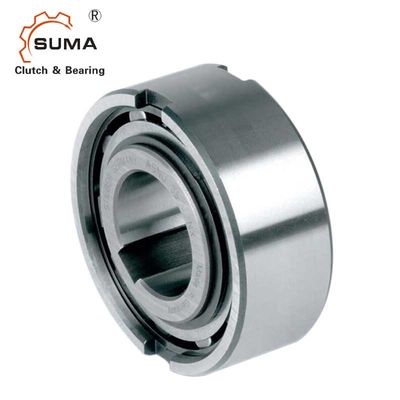

ASNU200 NFS200 USNU200 44500Nm No Bearing Supported  One Way Roller Clutch Bearings 3ASNU200 NFS200 USNU200 44500Nm No Bearing Supported  One Way Roller Clutch Bearings 4ASNU200 NFS200 USNU200 44500Nm No Bearing Supported  One Way Roller Clutch Bearings 5

ASNU200 NFS200 USNU200 44500Nm No Bearing Supported  One Way Roller Clutch Bearings 6
