| Place of Origin | CHINA |
| Brand Name | SUMA |
| Certification | ISO SGS |
| Model Number | 4.055 4.056 4.058 |

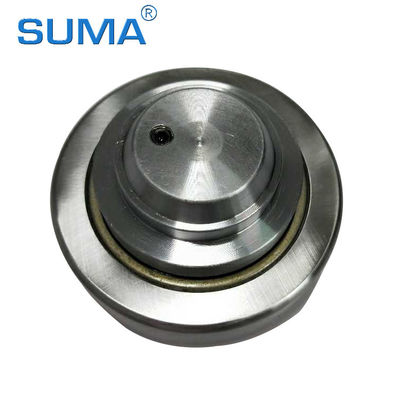

4.055 4.056 4.058 Combined Roller Bearing
Description of Combined Roller Bearing for Forklift
The Combined Roller Bearing is composed of two main rollers, a side roller and a shaft head, which are installed in two different directions to reduce space and reduce manufacturing costs. The radial and axial direction bearing capacity is relatively large, and the accessories are highly replaceable. The adjustable combined roller bearing can adjust the position of the mandrel by adjusting the eccentric outer hexagon or the eccentric valve to achieve the purpose of adjusting the axial dimension of the side roller.
Composite roller bearings are mainly used in: forklifts, stackers, metallurgical industry, container front forks, cranes and other large lifting equipment and material lifting equipment.
Catalogue of Combined Roller Bearings for Forklift
| Model No. |
D mm. |
T mm. |
d -0.05 mm. | H mm. | h mm. | B mm. | A mm. | S mm. | r mm. | C KN | COKN | COAKN |
r/pm max. |
Weight kg |
| 4.053 | 52,5 | 40 | 30 | 33,0 | 27,0 | 17 | 5,0 | 15 | 2 | 24,0 | 32,0 | 7 | 800 | 0,46 |
| 4.054 | 62,5 | 42 | 30 | 37,5 | 30,5 | 20 | 2,5 | 20 | 3 | 31,0 | 35,5 | 11 | 900 | 0,53 |
| 4.055 | 70,1 | 48 | 35 | 44,0 | 36,0 | 23 | 2,5 | 22 | 4 | 45,5 | 51,0 | 14 | 900 | 0,80 |
| 4.056 | 77,7 | 54 | 40 | 48,0 | 36,5 | 23 | 3,0 | 26 | 4 | 48,0 | 56,8 | 18 | 800 | 1,00 |
| 4.057 | 77,7 | 53 | 40 | 40,0 | 29,0 | 23 | 3,0 | 26 | 4 | 48,0 | 56,8 | 18 | 800 | 0,87 |
| 4.058 | 88,4 | 59 | 45 | 57,0 | 44,0 | 30 | 3,5 | 26 | 3 | 68,0 | 72,0 | 23 | 750 | 1,62 |
| 4.059 | 101,2 | 67 | 50 | 46,0 | 33,0 | 28 | 3,0 | 30 | 3 | 73,0 | 82,0 | 27 | 700 | 1,74 |
| 4.06 | 107,7 | 71 | 55 | 54,0 | 39,0 | 31 | 3,0 | 34 | 5 | 81,0 | 95,0 | 36 | 650 | 2,27 |
| 4.061 | 107,7 | 71 | 60 | 69,0 | 55,0 | 31 | 4,0 | 34 | 5 | 81,0 | 95,0 | 36 | 650 | 2,82 |
| 4.062 | 123,0 | 80 | 60 | 72,3 | 56,0 | 37 | 5,0 | 40 | 5 | 110,0 | 132,0 | 50 | 550 | 3,89 |
| 4.063 | 149,0 | 103 | 60 | 78,5 | 58,5 | 43 | 5,5 | 50 | 3 | 151,0 | 192,0 | 71 | 450 | 6,52 |
Pictures
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Q: How do you pack the goods?
Each in small white box or Roll Pack or Tube pack - in 19x18x9CM carton box - 29*28*19CM carton box - Wooden box / Wooden pallet
