NUTR25 GCr15 Heavy Duty Yoke Type Track Roller Bearing

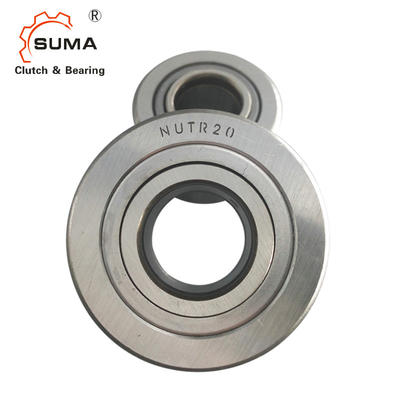

  • NUTR25 GCr15 Heavy Duty Yoke Type Track Roller Bearing

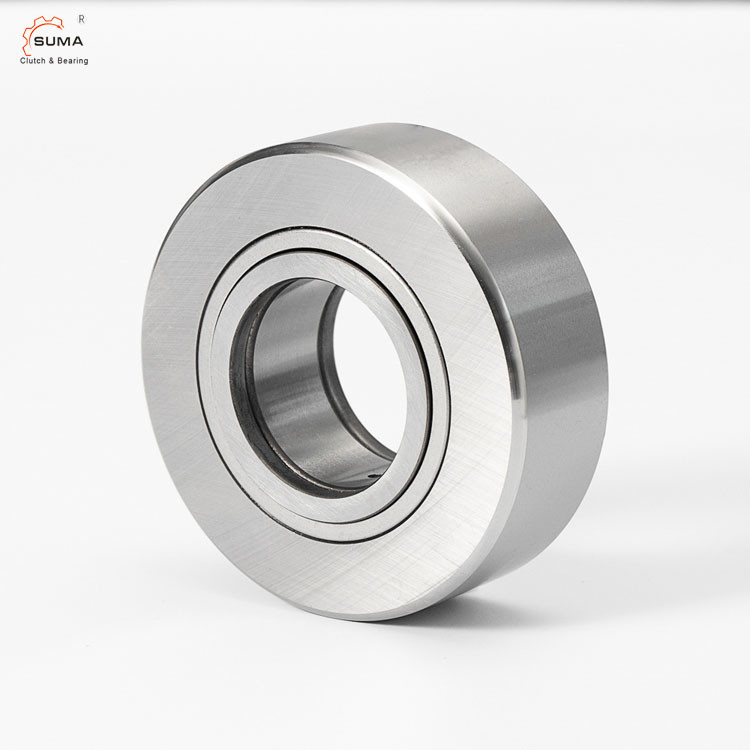

  • NUTR25 GCr15 Heavy Duty Yoke Type Track Roller Bearing

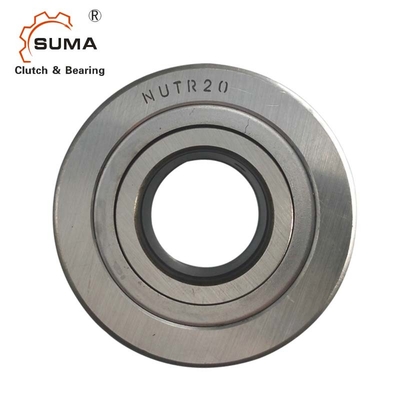

  • NUTR25 GCr15 Heavy Duty Yoke Type Track Roller Bearing

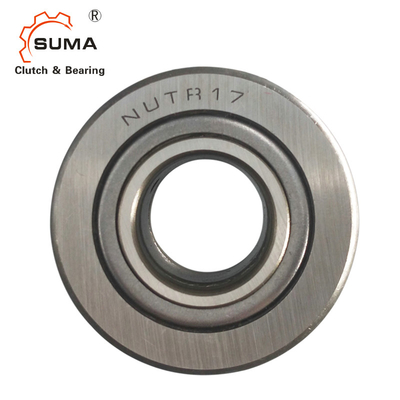

  • NUTR25 GCr15 Heavy Duty Yoke Type Track Roller Bearing

NUTR25 GCr15 Heavy Duty Yoke Type Track Roller Bearing

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number NUTR25
Product Details
Product Name:
Yoke Type Track Roller Bearing NUTR25
Material:
Bearing Steel GCr15
Size:
25*52*25mm
Dyn. Load Capacity:
43500
Sta. Load Capacity:
60000
Package:
Roll Pack + Carton Box
Warranty:
6 Months
OEM:
Accept
High Light:

NUTR25 Yoke Type Track Roller Bearing

,

GCr15 Yoke Type Track Roller Bearing

,

GCr15 Yoke Type Track Roller

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD9-USD11 PER PIECE
Packaging Details
Roll pack + Carton Box
Delivery Time
2-5 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability
100000 PCS PER MONTH
Product Description

NUTR25 GCr15 Heavy Duty Yoke Type Track Roller Bearing



Features



Model NUTR supporting roller is the double-row roller bearing with full of needles. The outer ring is guided by shoulder.

All parts of bearing is enclosed by the seal cover pressed in outer ring to form a complete unit.

The seal cover and thrust baffle ring constitute the high-efficient gas seal.

This kind of Model NUTR supporting roller needle bearing can withstand heavy load.

Because of axial guide in rolling body, it can withstand the stock axial load even in the high speed. If the surface of outer ring is cylinder face, the designation of bearing is NUYT...X.



Dimensions and Capacities

NUTR25 GCr15 Heavy Duty Yoke Type Track Roller Bearing 0



Shaft

Dia



Bearing Designation

Boundary Dimensions

Basic Load Rating



Limiting Speed

d D B C d1 rs ris

As yoke type

track rollers

Dynamic

Static

Cw

Cow

mm mm min min N rpm
35 NUTR 15 15 35 19 18 20 0.6 0.3 23000 27000 16000 18300 6500
40 NUTR 17 17 40 21 20 22 1 0.3 24800 31000 18500 22800 5500
42 NUTR 15 42 15 42 19 18 20 0.6 0.3 23000 27000 19400 23800 6500
47 NUTR 17 47 17 47 21 20 22 1 0.3 24800 31000 21300 28000 5500
NUTR 20 20 47 25 24 27 1 0.3 39000 50000 28000 35000 4200
52 NUTR 20 52 20 52 25 24 27 1 0.3 39000 50000 31500 41000 4200
NUTR 25 25 52 25 24 31 1 0.3 43500 60000 29000 37500 3400
62 NUTR 25 62 25 62 25 24 31 1 0.3 43500 60000 35500 50000 3400
NUTR 30 30 62 29 28 38 1 0.3 59000 79000 40000 51000 2600
72 NUTR 30 72 30 72 29 28 38 1 0.3 59000 79000 48000 65000 2600
NUTR 35 35 72 29 28 44 1.1 0.6 65000 93000 45000 61000 2100
80 NUTR 35 80 35 80 29 28 44 1.1 0.6 65000 93000 51000 72000 2100
NUTR 40 40 80 32 30 51 1.1 0.6 90000 134000 56000 76000 1600
85 NUTR 45 45 85 32 30 55 1.1 0.6 95000 147000 56000 79000 1400
90 NUTR 40 90 40 90 32 30 51 1.1 0.6 90000 134000 66000 96000 1600
NUTR 50 50 90 32 30 60 1.1 0.6 10000 161000 57000 81000 1300
100 NUTR 45 100 45 100 32 30 55 1.1 0.6 95000 147000 72000 10800 1400
110 NUTR 50 110 50 110 32 30 60 1.1 0.6 10000 161000 76000 121000 1300



Pictures

NUTR25 GCr15 Heavy Duty Yoke Type Track Roller Bearing 1

NUTR25 GCr15 Heavy Duty Yoke Type Track Roller Bearing 2
