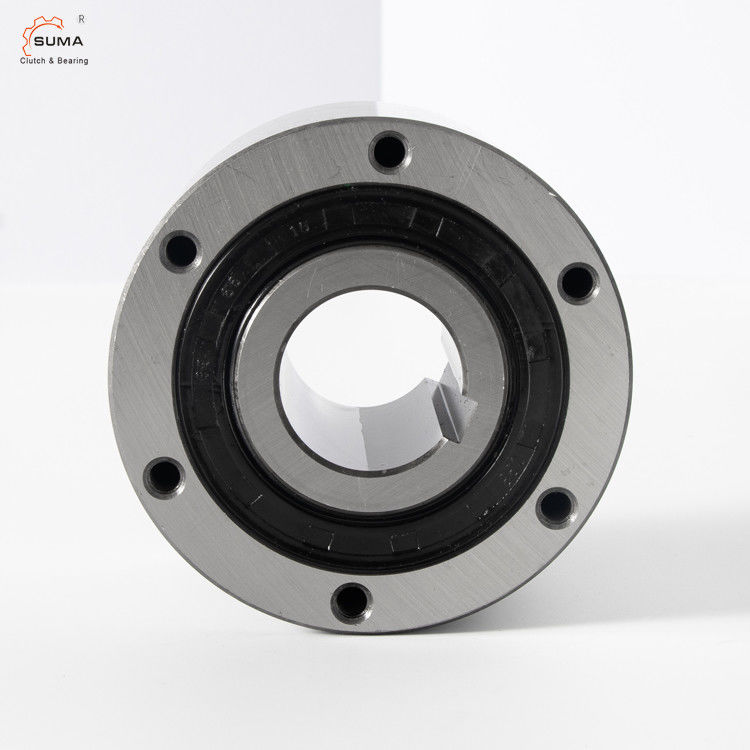

FSO800 HPI800 One Way Sprag Freewheels Cam Clutch Bearing
Features
Types FSO, FSO-GR, and HPI 750 to 1027 are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.
Lubrication
Types FSO and HPI are oil lubricated and use standard shaft lip seals.
Type FSO-GR is grease lubricated and can be equipped with contact free labyrinth seals.
Type HPI is specially designed for high speed indexing applications.
Dimensions and Capacities
| Size |
Torque [Nm] |
Overrunning speeds [min-1] |
DIMENSION [mm] | Lubricant | Weight | torque | |||||||||||||||||
| FSO | FS | dH7-bxh | d4) | A | B5) | C | D | E | F | G | z | J | K | L | P | f | FSO | HPI | FS | TR | |||
| TKN1) | nmax2) | nmax3) | min-max | -0.05 | [kg] | [Ncm] | |||||||||||||||||
| 750 | 9660 | 1800/650 | 1000/650 | 65-18x11 | 57–87 | 152.4 | 222.25 | 149.2 | 31.7 | 1.6 | 107.74 | 177.8 | 8* | M12 | 25 | 1/2-20 | 49.2 | 1.6 | 222 | 384 | 207 | 38 | 5.08 |
| 70-20x12 | |||||||||||||||||||||||
| 75-20x12 | |||||||||||||||||||||||
| 80-22x14 | |||||||||||||||||||||||
| 800 | 17940 | 1500/525 | 850/525 | 85-22x14 | 66–112 | 152.4 | 254 | 149.2 | 31.7 | 1.6 | 139.7 | 227 | 8 | M12 | 25 | 1/2-20 | 49.2 | 1.6 | 222 | 444 | 251 | 46 | 7.12 |
| 80-22x14 | |||||||||||||||||||||||
| 90-25x14 | |||||||||||||||||||||||
| 100-28x16 | |||||||||||||||||||||||
| 110-28x16 | |||||||||||||||||||||||
| 900 | 24408 | 1350/500 | 700/500 | 100-28x16 | 92–138 | 161.9 | 304.8 | 158.7 | 34.9 | 1.6 | 161.92 | 247.65 | 10 | M16 | 32 | 1/2-20 | 54 | 1.6 | 532 | 473 | 340 | 71 | 8.47 |
| 110-28x16 | |||||||||||||||||||||||
| 120-32x18 | |||||||||||||||||||||||
| 130-32x18 | |||||||||||||||||||||||
| 1027 | 36612 | 700/375 | 500/375 | 130-32x18 | 125–177 | 168.3 | 381 | 165.1 | 34.9 | 3.2 | 228.6 | 298.45 | 12 | M16 | 32 | 1/2-20 | 54 | 3.2 | 651 | 946 | 473 | 113 | 13.56 |
| 150-36x20 | |||||||||||||||||||||||
| 175-45x25 | |||||||||||||||||||||||
NOTES
1) T max = 2 × T KN » Refer to Selection page 10 to 13
2) Inner race/outer raceg
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60° plus 2 extra-holes at 180° » Refer to mounting and maintenance instructions
