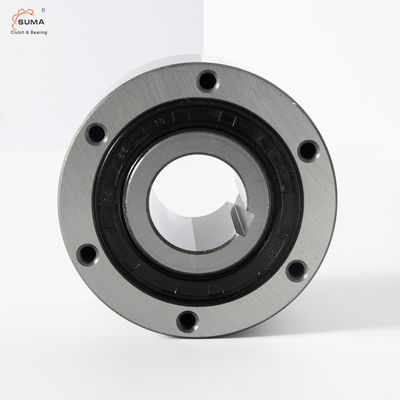

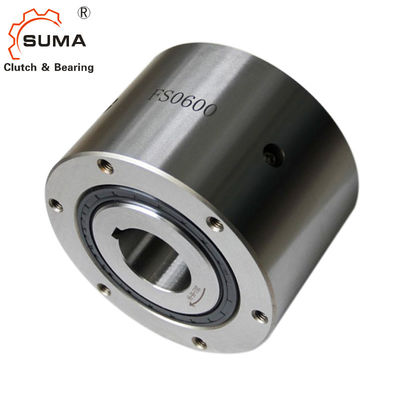

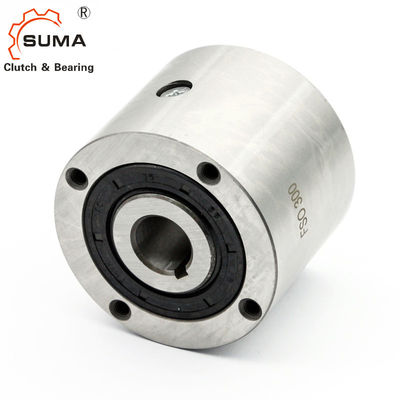

FSO700 HPI700 One Way Freewheels Sprag Clutch Bearing
  • FSO700 HPI700 One Way Freewheels Sprag Clutch Bearing
  • FSO700 HPI700 One Way Freewheels Sprag Clutch Bearing
  • FSO700 HPI700 One Way Freewheels Sprag Clutch Bearing

FSO700 HPI700 One Way Freewheels Sprag Clutch Bearing

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number FSO700 HPI700
Product Details
Product Name:
Sprag Clutch Bearing FSO700 HPI700
Torque Capacity:
6900 Nm
Bore Range:
48-82mm
Outer Diameter:
180.975mm
Thickness:
127mm
Weight:
19KG
Warranty:
1 Year
Port:
Shanghai , Ningbo
High Light:

HPI700 Sprag Clutch Bearing

,

HPI700 freewheel clutch bearing

,

One Way freewheel clutch bearing

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD320-USD400 PER PIECE
Packaging Details
Carton Box / Wooden Box
Delivery Time
10-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Product Description

FSO700 HPI700 One Way Sprag Freewheels Cam Clutch Bearing

Features



Types FSO, FSO-GR, and HPI 300 to 700 are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.




Lubrication



Types FSO and HPI are oil lubricated and use standard shaft lip seals.

Type FSO-GR is grease lubricated and can be equipped with contact free labyrinth seals.



Type HPI is specially designed for high speed indexing applications.



Dimensions and Capacities

FSO700 HPI700 One Way Freewheels Sprag Clutch Bearing 0

Type Size

Torque

TKN1

[Nm]

Overrunning speeds

[min-1]

                                     DIMENSION ( MM ) Lubricant Weight Torque Drag
FSO FSO-GR HPI

FSO

nmax2)

FSO-GR

nmax3)

dH7-bxh

d4)

min-max

A

B

-0.05

C E F G z J K L f FSO FSO..GR HPI [kg] TR [Ncm]
300 379 3000/900 3600/900 15-5x5 12...19 63.5 76.2 60.45 1.6 28.58 66.67 4 M8 13 M6 0.8 7 10 14 1.6 18
400 407 2800/850 3600/850 18-6x6 12...22 69.85 88.9 68.07 1.6 30 73 4 M8 13 M6 0.8 10 20 20 2.7 27
500 1621 2500/800 3000/800 30-8x7 19...33 88.9 107.95 85.73 1.6 45 92 4 M8 16 M6 1.5 22 35 35 4.8 31
600 3105 2200/750 2400/750 45-14x9 24...57 95.25 136.525 92.2 1.6 63.5 120.6 6 M8 16 M6 1.6 52 84 84 8.6 62
700 6900 1600/450 2000/450 60-18x11 48...82 127 180.975 123.85 1.6 90 158.75 8* M10* 20 M6 1.6 168 280 280 19 156





NOTES



1) T max = 2 × T KN » Refer to Selection page 10 to 13
2) Inner race/outer raceg
3) Inner race/outer race labyrinth seal
4) Inch bore available on request
5) Only for oversize bore
Size 600 > 50 mm
Size 700 > 75 mm
*) 6 holes equally spaced at 60° plus 2 extra-holes at 180° » Refer to mounting and maintenance instructions



Mounting and Coupling

FSO700 HPI700 One Way Freewheels Sprag Clutch Bearing 1

Pictures



FSO700 HPI700 One Way Freewheels Sprag Clutch Bearing 2

FSO700 HPI700 One Way Freewheels Sprag Clutch Bearing 3



FSO700 HPI700 One Way Freewheels Sprag Clutch Bearing 4FSO700 HPI700 One Way Freewheels Sprag Clutch Bearing 5
