Place of Origin: | CHINA |
---|---|
Brand Name: | SUMA |
Certification: | ISO SGS |
Model Number: | CK-A45100 |
Minimum Order Quantity: | 1 |
Price: | USD30-USD50 PER PIECE |
Packaging Details: | Carton Box |
Delivery Time: | 10-15 Days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, Paypal |
Supply Ability: | 1000PCS Per Month |
Product Name: | Sprag Clutch Bearing CK-A45100 | Material: | GCr15 Bearing Steel |
---|---|---|---|
Torque Capacity: | 783Nm | Rotation Speed: | 560RPM |
Warranty: | 1 Year | Size: | 45*100*30mm |
Unit Weight: | 1.07Kg | OEM: | Accept |
High Light: | Freewheel Sprag Bearing,1 Way Sprag Bearing,1 Way Sprag Clutch Bearing |

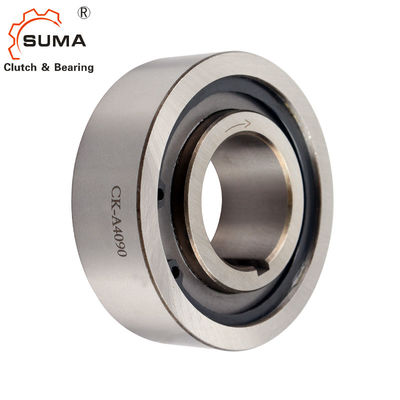

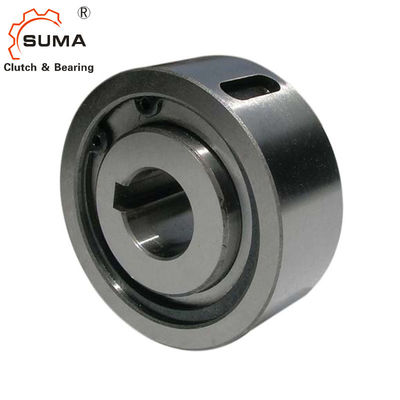

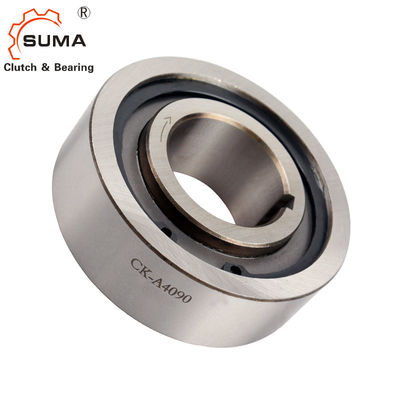

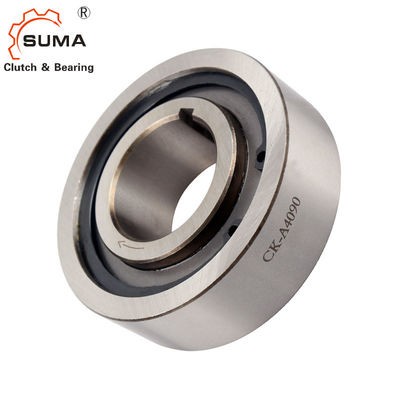

CKA Freewheel Sprag Bearing
Features
Type CK-A is a sprag type freewheel non-bearing supported. Nominal dia.-Direction diameter is a standard ball bearings dimension. Bearings are required to support axial and radial loads. Units are delivered grease Iubricated.
The standard arrangement is to install this type besides a bearing with the same housing diameter tolerance. The inner race and the outer race are keyed to the shaft and hole.
This series extensive used in machinery system of conveyer, hosting, packing, printing,paper making, weaving, chemical, medical, food and so on.
Technical Datas
Item | CK-A45100 |
Material | GCr15 |
Bore dia. | 45 mm |
Outer dia. | 100 mm |
Width (B) | 30 mm |
Torque capacity | 783 N.m |
Overrunning limiting speed (inner race) | 560 r/min |
Overrunning limiting speed (outer race) | 200 r/min |
Weight | 1.07 kg |
Package | Carton box or as your requirements |
Dimensions and Capacities
Model
|
Nominal Torque
|
Overrunning Limiting Speed (r/min)
|
Dimension [mm] |
Bearing
|
Weight
|
||||||
Outer race | Inner race | ||||||||||
[N.m] | Inner race | Outer race | D[h7] | B | bwxtw | d[h7] | C | bnxtn | [kg] | ||
CK-A1542 | 54 | 1750 | 500 | 42 | 23 | 3x1.8 | 15 | 24 | 3x1.4 | 6302 | 0.17 |
CK-A1747 | 75 | 1575 | 400 | 47 | 23 | 3x1.8 | 17 | 24 | 3x1.4 | 6304 | 0.21 |
CK-A2052 | 95 | 1400 | 400 | 52 | 23 | 3x1.8 | 20 | 24 | 3x1.4 | 6305 | 0.25 |
CK-A2562 | 145 | 1260 | 350 | 62 | 23 | 4x2.5 | 25 | 24 | 4x1.8 | 6306 | 0.35 |
CK-A3072 | 208 | 1050 | 300 | 72 | 23 | 5x3.0 | 30 | 24 | 5x2.3 | 6307 | 0.47 |
CK-A3580 | 340 | 815 | 200 | 80 | 28 | 8x4.0 | 35 | 30 | 6x2.8 | 6308 | 0.69 |
CK-A4090 | 462 | 700 | 200 | 90 | 28 | 8x4.0 | 40 | 30 | 6x2.8 | 6309 | 0.87 |
CK-A45100 | 783 | 560 | 200 | 100 | 28 | 8x4.0 | 45 | 30 | 6x2.8 | 6310 | 1.07 |
CK-A50110 | 850 | 525 | 180 | 110 | 28 | 10x5.0 | 50 | 30 | 8x3.3 | 6311 | 1.59 |
CK-A60130 | 1050 | 490 | 180 | 130 | 34 | 10x5.0 | 60 | 36 | 8x3.3 | 6312 | 2.16 |
CK-A65140 | 1224 | 490 | 180 | 140 | 34 | 10x5.0 | 65 | 36 | 10x3.3 | 6313 | 2.49 |
CK-A 70150 |
1850 | 455 | 150 | 150 | 40 | 10x5.0 | 70 | 42 | 10x3.3 | 6314 | 3.36 |
CK-A 75160 |
2140 | 455 | 150 | 160 | 40 | 12x5.0 | 75 | 42 | 12x3.3 | 6315 | 3.81 |
CK-A80170 | 2450 | 420 | 150 | 170 | 40 | 12x5.0 | 80 | 42 | 12x3.3 | 6316 | 4.29 |
CK-A1250 | 31.5 | 1750 | 400 | 50 | 22 | 3x1.8 | 12 | 24 | 3x1.4 | 0.24 | |
CK-A1855 | 50.0 | 1575 | 350 | 55 | 22 | 4x2.5 | 18 | 24 | 4x1.8 | 0.28 | |
CK-A2060 | 63.0 | 1600 | 350 | 60 | 22 | 6x3.5 | 20 | 24 | 6x2.8 | 0.33 | |
CK-A 2563 |
100 | 1260 | 350 | 63 | 24 | 6x3.5 | 25 | 26 | 6x2.8 | 0.37 | |
CK-A2563T | 140 | 1260 | 350 | 63 | 30 | 6x3.5 | 25 | 32 | 8x3.3 | 0.68 | |
CK-A2870 | 180 | 1050 | 300 | 70 | 30 | 8x4.0 | 28 | 32 | 8x3.3 | 0.60 | |
CK-A3080T | 340 | 875 | 200 | 80 | 30 | 8x4.0 | 30 | 32 | 8x3.3 | 0.75 | |
CK-A3585 | 400 | 815 | 200 | 85 | 30 | 8x4.0 | 35 | 32 | 8x3.3 | 1.00 | |
CK-A35100 | 780 | 875 | 200 | 100 | 32 | 10x5.0 | 35 | 34 | 10x3.3 | 1.34 | |
CK-A35140 | 1000 | 490 | 180 | 140 | 35 | 8x4.0 | 35 | 35 | 10x3.5 | 3.28 | |
CK-A40100 | 780 | 560 | 200 | 100 | 34 | 10x5.0 | 40 | 34 | 10x3.3 | 1.20 | |
CK-A40110 | 850 | 700 | 180 | 110 | 32 | 10x5.0 | 40 | 34 | 10x3.3 | 1.19 | |
CK-A50125 | 1000 | 490 | 180 | 125 | 36 | 14x5.5 | 50 | 35 | 14x3.8 | 2.21 | |
CK-A50130 | 1050 | 560 | 180 | 130 | 36 | 14x5.5 | 50 | 38 | 14x3.8 | 3.02 | |
CK-A55160 | 2000 | 455 | 150 | 160 | 52 | 16x6.0 | 55 | 55 | 16x4.3 | 6.96 | |
CK-A58130 | 1050 | 490 | 180 | 130 | 36 | 14x5.5 | 58 | 38 | 14x3.8 | 2.60 | |
CK-A60180 | 2000 | 420 | 140 | 180 | 52 | 18x6.0 | 60 | 52 | 18x4.4 | 7.40 |
Mounting and Coupling
