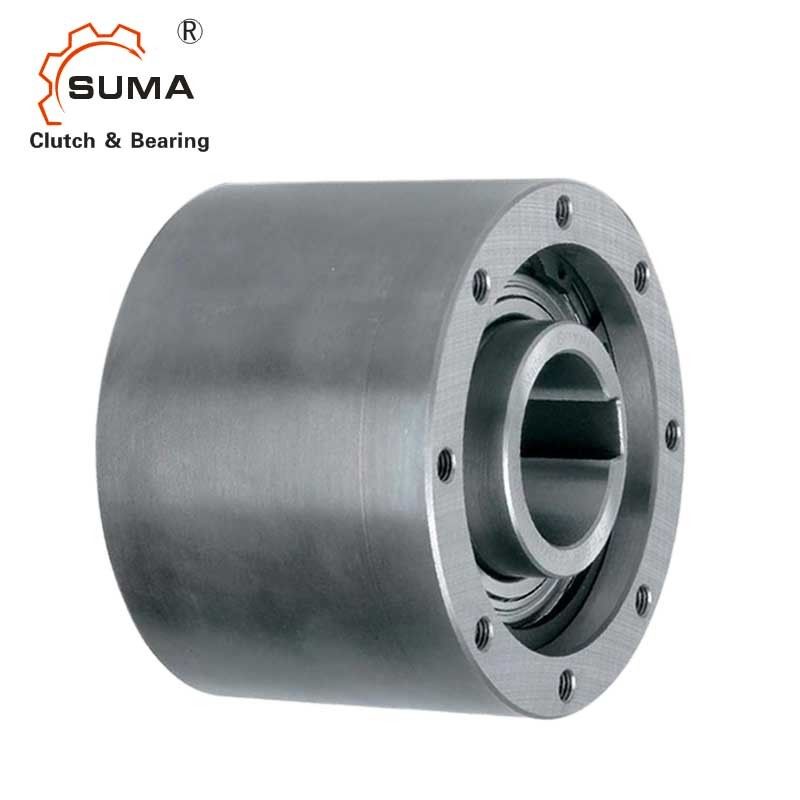

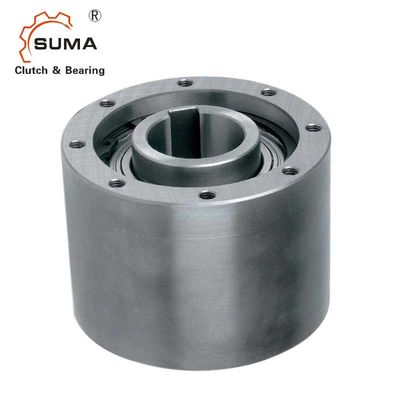

Name: 3400Nm SMZ60 GCr15 One Way Overrunning Sprag Clutch Multipurpose
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: SMZ60
Price: 220.00 USD
Availability: InStock

Brand Name:	SUMA
Model Number:	SMZ60
MOQ:	1
Price:	USD200-USD240 PER PIECE
Delivery Time:	10-15 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO SGS

Product Name:

Cam Clutch Bearing SMZ60

Bearing Supported:

YES

Material:

Bearing Steel GCr15

Size:

60*155*100mm

Torque Capacity:

3400Nm

Warranty:

1 Year

Package:

Carton Box / Wooden Box

Weight:

10.2Kg

Packaging Details:

Carton Box / Wooden Box

Highlight:

SMZ60 overrunning sprag clutch

GCr15 overrunning sprag clutch

3400Nm one way sprag clutch

Product Description

SMZ60 One Way Sprag Cam Clutch Bearing for Pump System
Features

Type SMZ is a sealed, sprag type freewheel, bearing supported using two 60..ZZ series grease lubricated bearings.
Units are delivered grease lubricated ready for installation.

SMZ units are intended as multipurpose, to be used in various applications.

The inner race is keyed to the shaft. The inside diameter of the outer race (dimension D4) should be used as the mounting register for the connected parts (sprocket, pulley, gear, torque arm...).

The mounting spigot should be to g6 tolerance.

Dimensions and Capacities

Type	Size		Overrunning speeds												Weight
SMZ	dH7	TKN1)	nimax2)	namax3)	D	D2	D3	D4H7	L	L1	G	z	t	m
	[mm]	[Nm]	[min-1]	[min-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]
	20	300	1600	700	80	30	68	55	65	67	M6	6	12	7.6	2
	30	1035	1500	500	100	45	88	75	80	82	M8	6	16	8.9	3.7
	35	1100	1400	300	110	50	95	80	85	87	M8	6	16	8.7	4.8
	45	1750	1300	300	125	60	110	95	90	92	M8	8	16	8.4	6.2
	60	3400	1100	250	155	80	140	125	100	102	M8	8	16	9.1	10.2
	70	4300	1000	250	175	95	162	145	103	105	M8	8	16	8.6	13.2

NOTES
1) T max = 2 × T KN
» Refer to Selection page 10 to 13
2) Inner race overruns
3) Outer race overruns
Keyway to DIN 6885.1
» Refer to mounting and maintenance instructions
page 16 to 19

Mounting and Coupling
