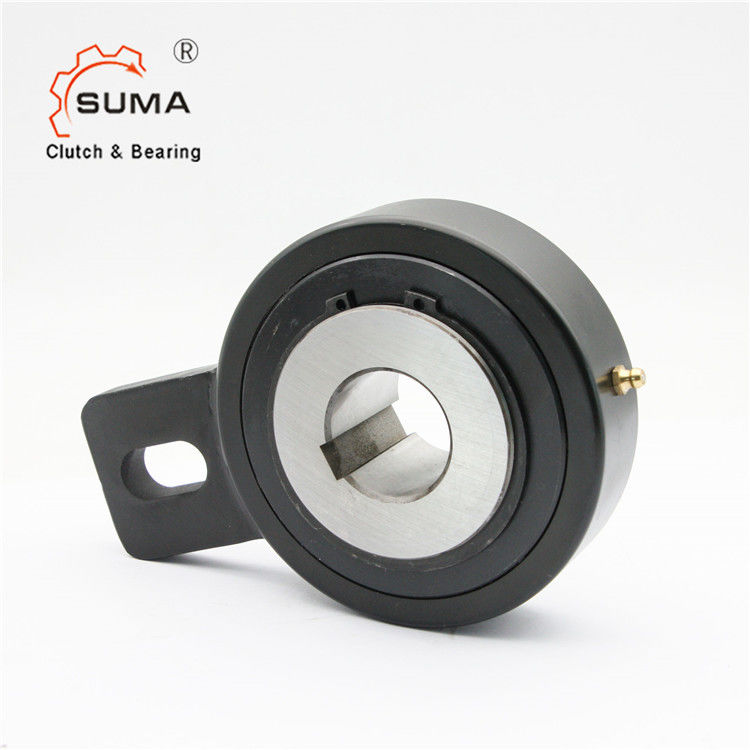

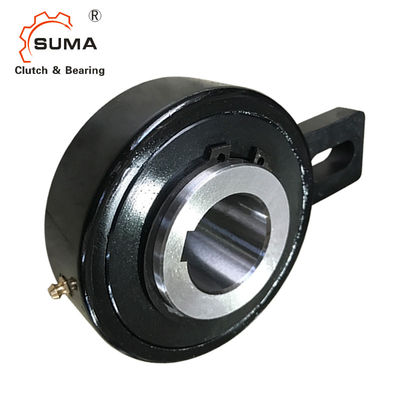

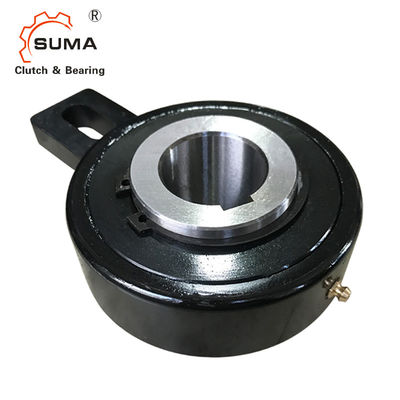

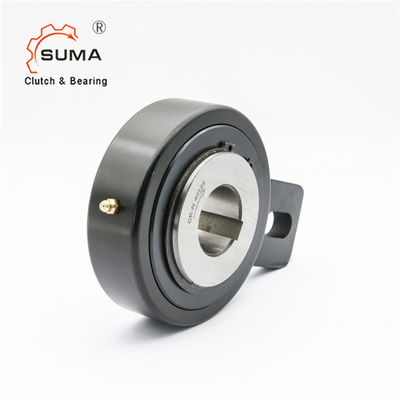

BSEU70-60 Conveyor One Way Cam Clutch Backstop Bearing Pre Lubricated
  • BSEU70-60 Conveyor One Way Cam Clutch Backstop Bearing Pre Lubricated
  • BSEU70-60 Conveyor One Way Cam Clutch Backstop Bearing Pre Lubricated
  • BSEU70-60 Conveyor One Way Cam Clutch Backstop Bearing Pre Lubricated
  • BSEU70-60 Conveyor One Way Cam Clutch Backstop Bearing Pre Lubricated

BSEU70-60 Conveyor One Way Cam Clutch Backstop Bearing Pre Lubricated

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number BSEU70-60
Product Details
Product Name:
Backstop Clutch
Material:
GCr15 Bearing Steel
Torque Capacity:
3140Nm
Rotation Speed:
350RPM
Unit Weight:
7.6Kg
Size:
60*165*59mm
Warranty:
1 Year
OEM:
Accept
High Light:

Conveyor backstop bearing

,

Cam Clutch backstop bearing

,

BSE 70-60 cam clutch bearing

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD180-USD210 PER PIECE
Packaging Details
Carton Box / Wooden Box
Delivery Time
7-10 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

      BSEU70-60 Conveyor Backstop Clutch One Way Cam Clutch Bearing



Features of BSEU backstop Clutch

  BSEU Series Cam Clutch was developed as a user-friendly backstopping Cam Clutch. It has cam and roller construction which is the same as the smaller size BS Series Cam Clutch. The outer race has a special shape which combines the torque arm providing easy installation. These Cam Clutches are shipped pre-lubricated with grease and ready for installation. Most often used as a backstop in applications where limited space is available.



Dimensions and Capacities of BSEU backstop Clutch

Item BSEU70-60
Material GCr15
Bore dia. 60 mm
Outer dia. 165 mm
Width 59 mm
Torque capacity 3140 N.m
Overrunning limiting speed 350 r/min
Weight 7.6 kg
Package Carton box, wooden box or as your requirements





Model Bore Size Torque
Capacity
(N·m)
Max.
Overrunning
(r/min)
Inner Race
D D2 L1 L B F b N E J W. MIN W. Max
Dia
( H7)
Keyway
BSEU25-20 20 6×2.8 216  500 83 42 35 12 40 90 15 35 5 1 0.999 0.948
BSEU25-25 25 8×3.3 216  500 83 42 35 12 40 90 15 35 5 1
BSEU40-20 20 6×2.8 1,440  450 118 60 55 15 40 110 15 35 8 1.5 3.781 3.363
BSEU40-25 25 8×3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40-30 30 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40-35 35 10×3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40-40 40 12× 3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU70-45 45 14×3.8 3,140  350 165 90 59 20 80 140 18 35 10 1.5 7.607 6.541
BSEU70-50 50 3,140  350 165 90 59 20 80 140 18 35 10 1.5
BSEU70-55 55 16×4.3 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70-60 60 18×4.4 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70-65 65 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70-70 70 20×4.9 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU90-75 75 4,700  250 190 120 63 20 80 165 20 40 15 2 10.046 9.265
BSEU90-80 80 22×5.4 4,700  250 190 120 63 20 80 165 20 40 15 2
BSEU90-85 85 4,700  250 190 120 63 20 80 165 20 40 15 2
BSEU90-90 90 25×5.4 4,700  250 190 120 63 20 80 165 20 40 15 2

Mounting and Coupling of BSEU backstop Clutch

Pictures of BSEU backstop Clutch
BSEU70-60 Conveyor One Way Cam Clutch Backstop Bearing Pre Lubricated 2
 BSEU RSBW AV CK-N.jpg
