Product Name: | Cam Clutch Bearing MZ60 | Bearing Supported: | YES |
---|---|---|---|
Material: | Bearing Steel GCr15 | Size: | 60*155*102mm |
Torque Capacity: | 2110Nm | Warranty: | 1 Year |
Package: | Carton Box / Wooden Box | OEM: | Accept |
High Light: | 102MM Cam Clutch,MZ60 Cam Clutch,MZ60 Backstop Clutch |

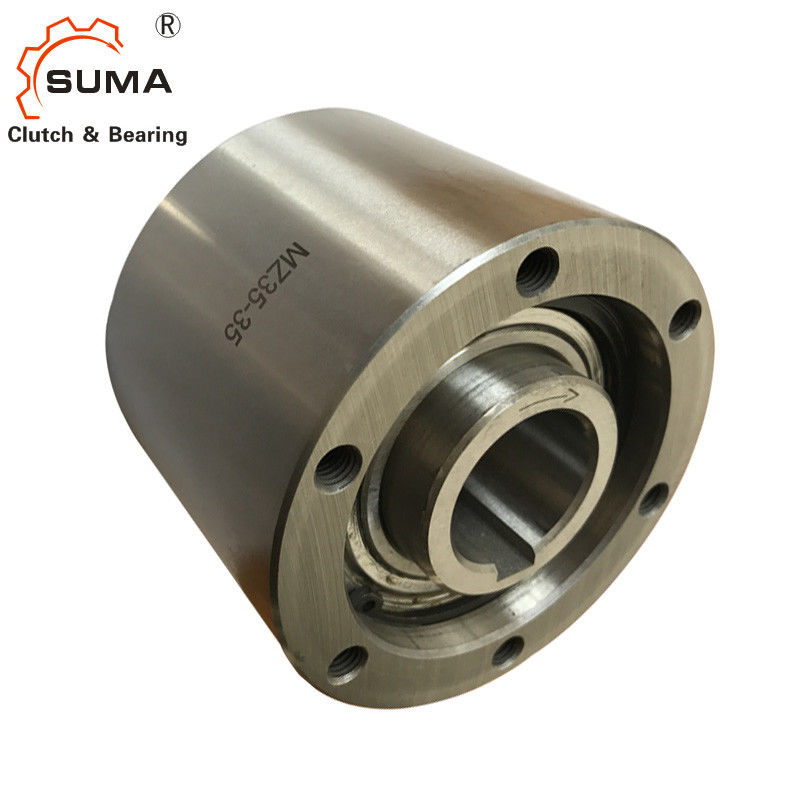

MZ60 Backstop Cam Clutch
Features
Type MZ is a sealed, sprag type freewheel, bearing supported using two 60..ZZ series grease lubrucated bearings. Units are delivered grease lubricated ready for installation. MZ units are intended as multipurpose, to be used in various applicatoins. A typical mounting arrangement is shown on the following page. The inner race is keyed to the shaft. The inside diameter of the outer race should be used as the mounting register for the connected parts( sprocket, pulley, gear, torque arm...). The mounting spigot should be to g6 tolerance.
Technical Datas
Item | MZ60 |
Material | GCr15 |
Bore dia. | 60 mm |
Outer dia. | 155 mm |
Width | 102 mm |
Torque capacity | 2110 N.m |
Drag torque | 0.98 N.m |
Weight | 10.2 kg |
Package | Carton box, wooden box or as your requirements |
Dimensions and Capacities
Model |
Torque capacity (Nm) |
Drag Torque (Nm) |
Max Overrunning (r/min) |
Max indexing (cycle/nin) |
Bore size |
A |
C |
B |
F |
(M6) |
G |
PCD D |
S |
H-M No.of Tapped Holes ×Size ×Pitch |
Weight (kg) |
||
Inner race | Outer race | Dia. (H7) |
key way |
||||||||||||||
MZ15 | 186 | 0.2 | 2200 | 900 | 150 | 15 | 5×2.3 | 62 | 60 | 68 | 25 | 47 | 5.5 | 58 | 10 | 6-M5×0.8 | 1.4 |
MZ17 | 215 | 0.2 | 2000 | 800 | 150 | 17 | 5×2.3 | 66 | 64 | 75 | 28 | 52 | 6.3 | 64 | 10 | 6-M5×0.8 | 1.8 |
MZ20 | 323 | 0.29 | 1900 | 700 | 150 | 20 | 6x2.8 | 67 | 65 | 80 | 30 | 55 | 7.6 | 68 | 12 | 6-M6×1.0 | 2.0 |
MZ30-22 | 735 | 0.39 |
1800
|
500 | 150 | 22 | 6x2.8 | 82 |
80 |
100 |
45 |
75 |
8.9 |
88 |
16 |
6-M8×1.25 |
3.7 |
MZ30-25 | 25 | 8×3.3 | |||||||||||||||
MZ30 | 30 | 10×3.3 | |||||||||||||||
MZ35 | 1080 | 0.49 | 1700 | 300 | 150 | 35 | 10×3.3 | 87 | 85 | 110 | 50 | 80 | 8.7 | 95 | 16 | 6-M8×1.25 | 4.8 |
MZ45-40 | 1620 | 0.69 | 1700 | 300 | 150 | 40 | 12×3.3 | 92 | 90 |
125 |
60 |
95 |
8.4 |
110 |
16 |
8-M8×1.25 |
6.2 |
MZ45 | 45 | 14×3.3 | |||||||||||||||
MZ60-50 | 2110 | 0.98 | 1600 | 250 | 150 | 50 | 14×3.8 | 102 | 100 | 155 |
80 |
125 |
9.1 |
140 |
16 |
8-M8×1.25 |
10.2 |
MZ60-55 | 55 | 16×4.3 | |||||||||||||||
MZ60 | 60 | 18×4.4 | |||||||||||||||
MZ70-65 | 3040 | 1.27 | 1300 | 250 | 150 | 65 | 18×4.4 | 105 |
103 |
175 |
95 |
145 |
8.6 |
162 |
16 |
8-M8×1.25 |
13.2 |
MZ70 | 70 | 20×4.9 |
Mounting and Coupling
