| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SUMA |
| Certification: | ISO SGS |
| Model Number: | GEG120ES |
| Minimum Order Quantity: | 1 PC |
| Price: | USD5-USD7 PER PIECE |
| Packaging Details: | Roll pack + Carton Box |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union,Paypal |
| Supply Ability: | 100000 PCS PER MONTH |
| Delivery Time: | 5-7 Days | Product Name: | Spherical Plain Bearings GEG120ES |
|---|---|---|---|
| Material: | Bearing Steel GCr15 | Package: | Roll Pack + Carton Box |
| Warranty: | 6 Months | Maintenance: | Every 3 Months |
| OEM: | Accept | Port: | Shanghai Nningbo |
| High Light: | GEG120ES Spherical Plain,Easy Dismounting Spherical Plain,GEG120ES Spherical Plain Shaft Bearing |
||

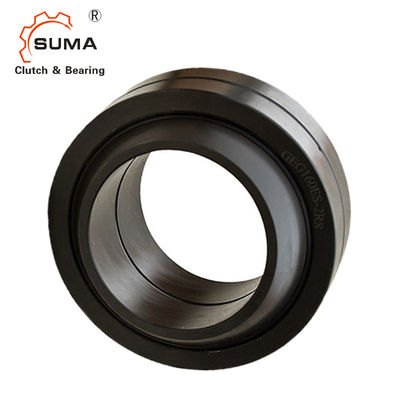

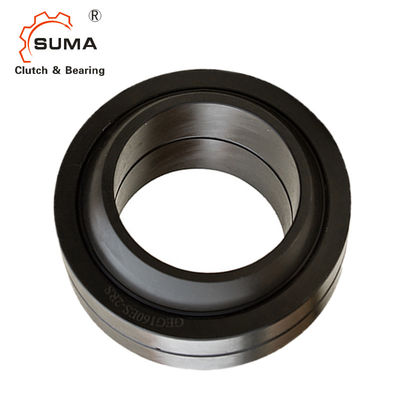

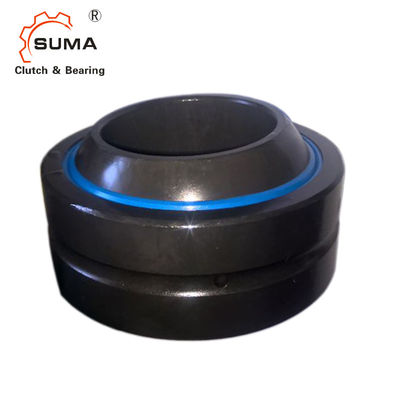

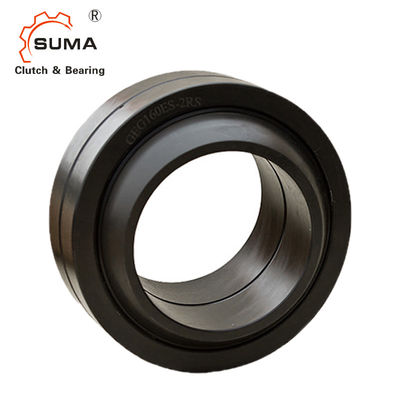

GEG120ES Radial Spherical Plain
Features
GEG..E: As Series GE..E, but with wider inner ring and larger outside diameter, for bearing arrangement where a larger angle of tilt is needed, which is suitable for larger loads mechanism.
GEG..ES: As series GE..ES, but wider inner ring and larger diameter, for bearing arrangement where a larger angle if tilt is needed which is suitable for larger loads mechanism.
GEG..ES 2RS: As series GE..ES 2RS, but wider inner ring and larger diameter, for bearing arrangement where a larger angle if tilt is needed which is suitable for larger loads mechanism, or a hole in the rod end. It has characteristics of large load capacity, easy mounting and dismounting and mechanism simplification.
Dimensions and Capacities
| Model Item |
Dimensions | Load Ratings(KN) | Weight (Kg) |
|||||||||
| d | D | B | C | dk | rs min |
r1s min |
α | Dynamic | Static | |||
| GEG4E | 4 | 14 | 7 | 4 | 10 | 0.3 | 0.3 | 20 | 3.4 | 17 | 0.005 | |
| GEG5E | 5 | 16 | 9 | 5 | 13 | 0.3 | 0.3 | 21 | 5.5 | 27 | 0.008 | |
| GEG6E | 6 | 16 | 9 | 5 | 13 | 0.3 | 0.3 | 21 | 5.5 | 27 | 0.006 | |
| GEG8E | 8 | 19 | 11 | 6 | 16 | 0.3 | 0.3 | 21 | 8.1 | 40 | 0.014 | |
| GEG10E | 10 | 22 | 12 | 7 | 18 | 0.3 | 0.3 | 18 | 10 | 53 | 0.021 | |
| GEG12E | 12 | 26 | 15 | 9 | 22 | 0.3 | 0.3 | 18 | 16 | 84 | 0.033 | |
| There is no oil groove or oil hole in the above sizes. | ||||||||||||
| GEG15ES | GEG15ES-2RS | 15 | 30 | 16 | 10 | 25 | 0.3 | 0.3 | 16 | 21 | 106 | 0.049 |
| GEG17ES | GEG17ES-2RS | 17 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 19 | 30 | 146 | 0.083 |
| GEG20ES | GEG20ES-2RS | 20 | 42 | 25 | 16 | 35.5 | 0.3 | 0.6 | 17 | 48 | 240 | 0.153 |
| GEG25ES | GEG25ES-2RS | 25 | 47 | 28 | 18 | 40.7 | 0.6 | 0.6 | 17 | 62 | 310 | 0.203 |
| GEG30ES | GEG30ES-2RS | 30 | 55 | 32 | 20 | 47 | 0.6 | 1 | 17 | 79 | 399 | 0.304 |
| GEG35ES | GEG35ES-2RS | 35 | 62 | 35 | 22 | 53 | 0.6 | 1 | 16 | 99 | 495 | 0.408 |
| GEG40ES | GEG40ES-2RS | 40 | 68 | 40 | 25 | 60 | 0.6 | 1 | 17 | 127 | 637 | 0.542 |
| GEG45ES | GEG45ES-2RS | 45 | 75 | 43 | 28 | 66 | 0.6 | 1 | 15 | 156 | 780 | 0.713 |
| GEG50ES | GEG50ES-2RS | 50 | 90 | 56 | 36 | 80 | 0.6 | 1 | 17 | 245 | 1220 | 1.14 |
| GEG60ES | GEG60ES-2RS | 60 | 105 | 63 | 40 | 92 | 1 | 1 | 17 | 313 | 1560 | 2.05 |
| GEG70ES | GEG70ES-2RS | 70 | 120 | 70 | 45 | 105 | 1 | 1 | 16 | 400 | 2000 | 3.01 |
| GEG80ES | GEG80ES-2RS | 80 | 130 | 75 | 50 | 115 | 1 | 1 | 14 | 488 | 2440 | 3.64 |
| GEG90ES | GEG90ES-2RS | 90 | 150 | 85 | 55 | 130 | 1 | 1 | 15 | 607 | 3030 | 5.22 |
| GEG100ES | GEG100ES-2RS | 100 | 160 | 85 | 55 | 140 | 1 | 1 | 14 | 654 | 3270 | 6.05 |
| GEG110ES | GEG110ES-2RS | 110 | 180 | 100 | 70 | 160 | 1 | 1 | 12 | 950 | 4750 | 9.68 |
| GEG120ES | GEG120ES-2RS | 120 | 210 | 115 | 70 | 180 | 1 | 1 | 16 | 1070 | 5350 | 14.01 |
| GEG140ES | GEG140ES-2RS | 140 | 230 | 130 | 80 | 200 | 1 | 1 | 16 | 1360 | 6800 | 19.01 |
| GEG160ES | GEG160ES-2RS | 160 | 260 | 135 | 80 | 225 | 1.1 | 1.1 | 16 | 1530 | 7650 | 20.02 |
| GEG180ES | GEG180ES-2RS | 180 | 290 | 155 | 100 | 250 | 1.1 | 2.1 | 14 | 2120 | 10600 | 32.21 |
| GEG200ES | GEG200ES-2RS | 200 | 320 | 165 | 100 | 275 | 1.1 | 3.1 | 15 | 2320 | 11600 | 45.28 |
| GEG220ES | GEG220ES-2RS | 220 | 340 | 175 | 100 | 300 | 1.1 | 4.1 | 16 | 2550 | 12700 | 51.12 |
| GEG240ES | GEG240ES-2RS | 240 | 370 | 190 | 110 | 325 | 1.1 | 5.1 | 15 | 3030 | 15190 | 65.12 |
| GEG260ES | GEG260ES-2RS | 260 | 400 | 205 | 120 | 350 | 1.1 | 6.1 | 15 | 3570 | 17850 | 82.44 |
| GEG280ES | GEG280ES-2RS | 280 | 430 | 210 | 120 | 375 | 1.1 | 7.1 | 15 | 3800 | 19100 | 97.21 |
