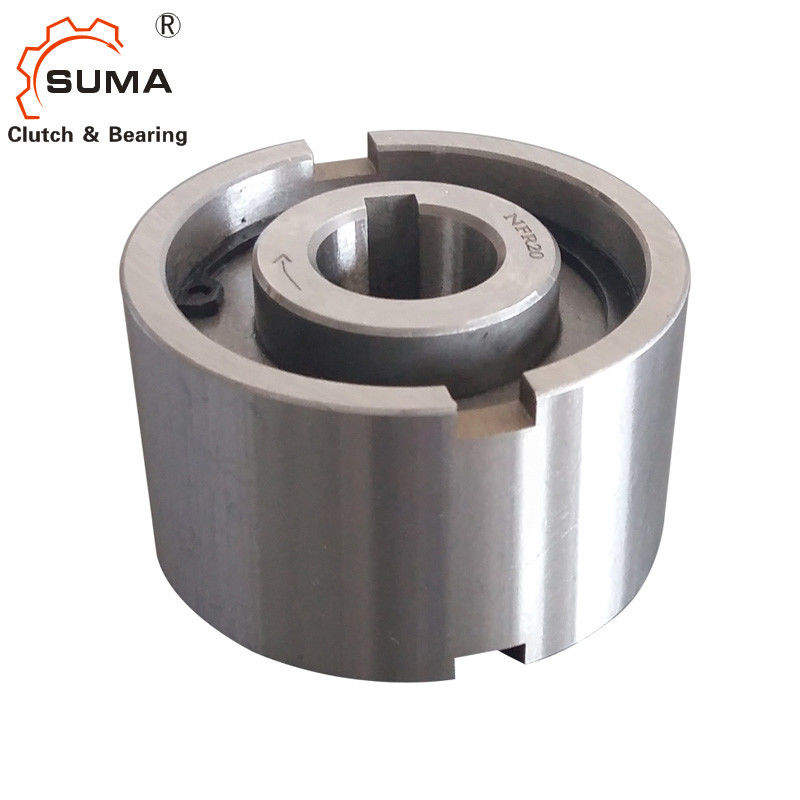

NFR20 Roller Clutch Bearing

Name: NFR20 Roller Clutch Bearing
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: NFR20
Price: 125.00 USD
Availability: InStock

Brand Name:	SUMA
Model Number:	NFR20
MOQ:	1
Price:	USD50-USD200 PER PIECE
Delivery Time:	10-15 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO SGS

Product Name:

One Way Clutch Bearing NFR20

Material:

GCr15 Bearing Steel

Rotation Speed:

650RPM

Unit Weight:

0.6Kg

Warranty:

1 Year

Size:

20*62*36mm

Torque Capacity:

188Nm

OEM:

Packaging Details:

Carton Box

Supply Ability:

1000PCS Per Month

Highlight:

N6 Tolerance Roller Clutch Bearing

NFR20 Roller Clutch Bearing

N6 Tolerance Ball And Roller Bearing

Product Description

NFR20 Roller Clutch Bearing

Features

Type NFR is a bearing supported roller type freewheelwithout any sealing. Lubrication and sealing must be

provided by the installation. Standard lubrication is oil.Size 8 to 20 units use steel on steel bearing support

from the inner race. Above size 25, two 160.. series ball bearings are used, giving a higher overrunning speed

capacity. A typical arrangement is shown overleaf.

The inner race is keyed to the shaft. The outer race has a positive n6 tolerance to give a press fit in a housing to H7.Additional side notches provide for positive torque transmission.The housing must be strong enough to not

expand after assembly.

Dimensions and Capacities

Type	Size		Overrunning speeds											Weight
NFR (ANR-ANG)	dH7 (mm)	TKN1 (Nm )	Nimax2) (min-1)	Namax3) (min-1)	Dn6 (mm)	D2 (mm)	D4 (mm)	L (mm)	I (mm)	t (mm)	bH11 (mm)	r (mm)	r1 (mm)	(kg)
	8	20	1000	1000	37	20	30	20		3	6	1	1.5	0.1
	12	20	1000	1000	37	20	30	20		3	6	1	1.5	0.1
	15	78	850	850	47	26	37	30		3.5	7	1.5	1.5	0.3
	20	188	650	650	62	37	52	36		3.5	8	2	2	0.6
	25	250	2100	3600	80	40	68	40	0.2	4	9	2.5	2	1.2
	30	500	1700	3200	90	45	75	48	0.2	5	12	2..5	2	1.8
	35	663	1550	3000	100	50	80	53	1.2	6	13	2.5	2.5	2.4
	40	1100	1150	2600	110	55	90	63	2.2	7	15	3	2.5	3.3
	45	1500	1000	2400	120	60	95	63	2.2	7	16	3	2.5	4.0
	50	2375	800	2150	130	70	110	80	2.7	8.5	17	3.5	3	5.7
	55	2550	750	2000	140	75	115	80	4.2	9	18	3.5	3	6.5
	60	4250	650	1900	150	80	125	95	3.2	9	18	3.5	3.5	8.9
	70	5875	550	1750	170	90	140	110	1.1	9	20	3.5	3.5	13.5
	80	10000	500	1600	190	105	160	125	0	9	20	4	3.5	19.0
	90	17250	450	1450	215	120	180	140	0.6	11.5	24	4	4	27.2
	100	79625	350	1250	260	140	210	150	2.6	14.5	28	4	4	44.5
	130	34750	250	1000	300	160	240	180	2	17.5	32	5	5	68.0

NFR20 Roller Clutch Bearing 0

Mounting and Coupling

NFR20 Roller Clutch Bearing 1

Pictures

NFR20 Roller Clutch Bearing 3
