| Product Name: | Cam Clutch Bearing PB10 | Bearing Supported: | YES |
|---|---|---|---|
| Material: | Bearing Steel GCr15 | Size: | 31.5*95*92mm |
| Warranty: | 1 Year | Package: | Carton Box / Wooden Box |
| Weight: | 2.5Kg | OEM: | Accept |
| High Light: | Cam One Way Sprag Clutch,PB10 One Way Sprag Clutch,PB10 Clutch Cam |
||

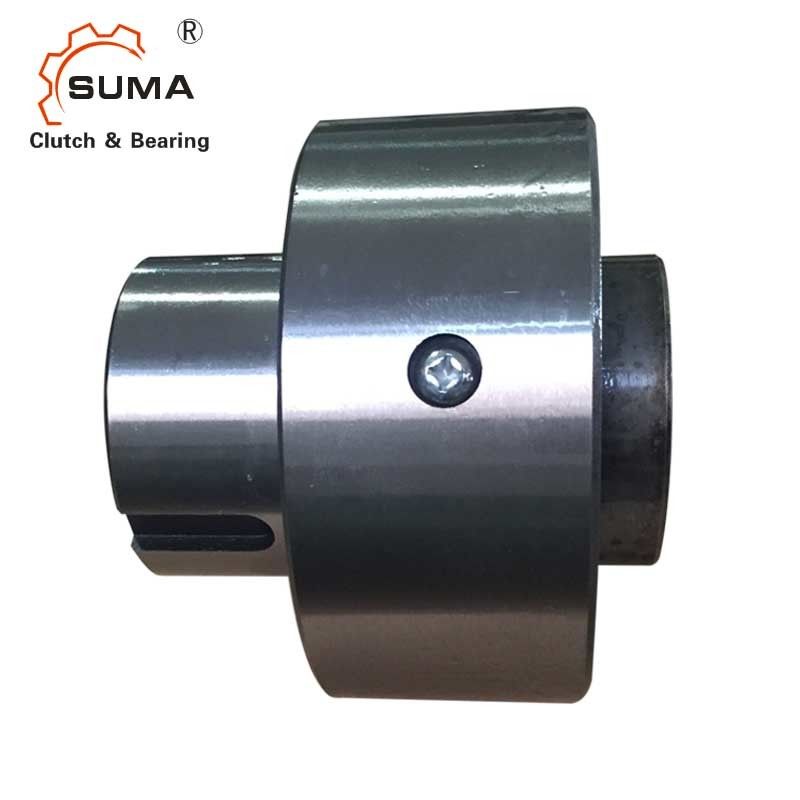

PB10 One Way Sprag Clutch
Installation and Usage
1. Concentricities of the inner race and the outer race are maintained by the plain bearing located between the outer race and the shaft. Radial load which works on the outer race is also supported by this plain bearing. The shaft must therefore be extended through the clutch outer race end.
2. Do not use the PB Series Cam Clutch as a coupling. Use with a flexible coupling when connecting two shafts.
3. Specify right (RH) or left hand (LH) inner race drive viewed from the end marked by the arrow in the illustration above. Check if the rotation of the clutch is correct before being run-in.
4. For indexing use, oil lubrication is recommended.
5. Key to be used should be in accordance with JIS B1301-1959
6. Thrust load should be supported by other devices, not by the Cam Clutch.
7. The bore of the driven member, such as the sprocket on the clutch outer race, should meet H6 or H7 tolerance of the JIS standard.
Dimensions and Capacities
| Model | Max. Overrunning (r/min) |
Bore Size | A |
B |
C h7 |
D |
E |
F |
Outer Race Keyway |
Weight (kg) |
||||
| Inner Race | Outer Race | Dia. (J7) |
Keyway | G | K | L | ||||||||
| PB 3 | 1,800 | 900 | 10 | 4x1.5 | 50 | 50 | 23 | 22 | 25 | 21 | 25.7 | 4* 2.5 | 16 | 0.23 |
| PB 5 | 1,800 | 900 | 16 | 5x2 | 70 | 60 | 32 | 32 | 35 | 25 | 38.8 | 5* 3.0 | 20 | 0.58 |
| PB 6 | 1,500 | 800 | 20 | 5x2 | 82 | 73 | 38 | 38 | 37 | 33 | 41 | 5* 3.0 | 27 | 1.1 |
| PB 8 | 1,200 | 650 | 25 | 7x3 | 85 | 83 | 45 | 40 | 45 | 33 | 42 | 7* 4.0 | 27 | 1.6 |
| PB 10 | 1,000 | 400 | 31.5 | 10x3.5 | 92 | 95 | 60 | 41 | 56 | 37 | 44 | 10 *4.5 | 28 | 2.5 |
| PB 12 | 800 | 300 | 40 | 10x3.5 | 100 | 113 | 65 | 50 | 66 | 37 | 52.6 | 10 *4.5 | 29 | 3.6 |
| PB 14 | 700 | 300 | 45 | 12x3.5 | 112 | 133 | 75 | 54 | 76 | 41 | 57.3 | 12 *4.5 | 30 | 6.0 |
