GEEW35ES Spherical Plain Bearing
  • GEEW35ES Spherical Plain Bearing
  • GEEW35ES Spherical Plain Bearing
  • GEEW35ES Spherical Plain Bearing
  • GEEW35ES Spherical Plain Bearing

GEEW35ES Spherical Plain Bearing

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number GEEW35ES
Product Details
Product Name:
Spherical Plain Bearings GEEW35ES
Material:
Bearing Steel GCr15
Package:
Roll Pack + Carton Box
Warranty:
6 Months
Maintenance:
Every 3 Months
OEM:
Accept
Delivery Time:
5-7 Days
Port:
Shanghai Ningbo
High Light:

GEEW35ES Spherical Plain Bearing

,

GCr15 Spherical Plain Bearings

,

GCr15 Radial Spherical Plain Bearings

Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
USD5-USD7 PER PIECE
Packaging Details
Roll pack + Carton Box
Delivery Time
2-5 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability
100000 PCS PER MONTH
Product Description

GEEW35ES Spherical Plain Bearing

Features

Sprag lift-off X

Integrated Freewheels FXM are equipped with sprag lift-off X. The sprag lift-off X is used for backstops and overrunning clutches, provided that in freewheeling operation the inner ring is rotating at high speed and providing with overrunning clutches that the driving operation is conducted at low speed. In freewheeling operation, the centrifugal force FC causes the sprag to lift off from the outer track. In this operating state, the freewheel works wear-free, i.e. with unlimited service life.

As series GE..ES, but with cylindrical extensions at each side, for bearing arrangements where spacer sleeves are normal incorporated at each side of the inner ring.

Dimensions and Capacities

GEEW35ES Spherical Plain Bearing 0

Bearing
Number
Dimensions (mm) Load Ratings kN Weight
≈kg
  d D B C d1 dk rs r1s a Dynamic Static
          max   min min
GEEW12ES 12 22 12 7 15.5 18 0.3 0.3 4 10 53 0.022
GEEW15ES 15 26 15 9 18.5 22 0.3 0.3 5 16 84 0.031
GEEW16ES 16 28 16 9 20 23 0.3 0.3 4 17 85 0.035
GEEW17ES 17 30 17 10 21 25 0.3 0.3 7 21 106 0.044
GEEW20ES 20 35 20 12 25 29 0.3 0.3 4 30 146 0.071
GEEW25ES 25 42 25 16 30.5 35.5 0.6 0.6 4 48 240 0.131
GEEW30ES 30 47 30 18 34 40.7 0.6 0.6 4 62 310 0.168
GEEW32ES 32 52 32 18 37 44 0.6 1 4 65 328 0.182
GEEW35ES 35 55 35 20 40 47 0.6 1 4 79 399 0.253
GEEW40ES 40 62 40 22 46 53 0.6 1 4 99 495 0.338
GEEW45ES 45 68 45 25 52 60 0.6 1 4 127 637 0.481
GEEW50ES 50 75 50 28 57 66 0.6 1 4 156 780 0.558
GEEW60ES 60 90 60 36 68 80 1 1 4 245 1220 1.15
GEEW63ES 63 95 63 36 71.5 83 1 1 4 253 1260 1.25
GEEW70ES 70 105 70 40 78 92 1 1 4 313 1560 1.71
GEEW80ES 80 120 80 45 91 105 1 1 4 400 2000 2.39
GEEW90ES 90 130 90 50 99 115 1 1 4 488 2440 3.21
GEEW100ES 100 150 100 55 113 130 1 1 4 607 3030 4.79
GEEW110ES 110 160 110 55 124 140 1 1 4 654 3270 5.78
GEEW125ES 125 180 125 70 138 160 1 1 4 950 4750 8.49
GEEW160ES 160 230 160 80 177 200 1 1 4 1360 6800 16.5
GEEW200ES 200 290 200 100 221 250 1.1 1.1 4 2120 10600 32.1
GEEW250ES 250 400 250 120 317 350 1.1 1.1 4 3750 17800 99.1
GEEW320ES 320 520 320 160 405 450 1.1 1.1 4 6200 30500 225
Pictures

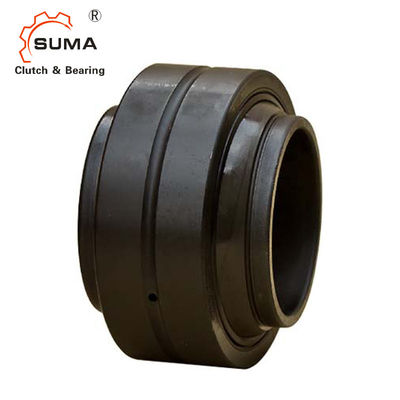

GEEW35ES Spherical Plain Bearing 1

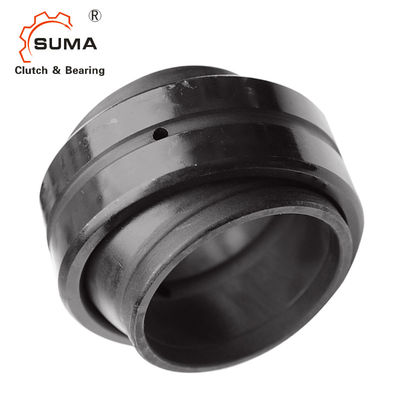

GEEW35ES Spherical Plain Bearing 2
