RSBW55 1295Nm One Way Backstop Clutch Bearing For Grain Silos
  • RSBW55 1295Nm One Way Backstop Clutch Bearing For Grain Silos

RSBW55 1295Nm One Way Backstop Clutch Bearing For Grain Silos

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number RSBW45 RSBW50 RSBW55
Product Details
Product Name:
Backstop Clutch RSBW45 RSBW50 RSBW55
Material:
GCr15 Bearing Steel
Size:
45*132*52mm
Torque Capacity:
1295Nm
Rotation Speed:
300RPM
Unit Weight:
4.6Kg
Warranty:
1 Year
OEM:
Accept
High Light:

Grain Silos backstop clutch bearing

,

RSBW55 backstop clutch bearing

,

1295Nm clutch one way bearing

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD90-USD120 PER PIECE
Packaging Details
Carton Box
Delivery Time
7-10 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

                     RSBW45 RSBW50 RSBW55 One Way Backstop Clutch Bearing for Grain Silos
 Features

 Application:
 Primarily used as a backstop. This type provide a high torque capacity with a minimum space requirement.



Structure:
Type RSBW is a DC sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected O rings.


Technical Datas

Product name Sprag type freewheel clutches
Model RSBW45 / RSBW50 / RSBW55
Torque capacity 1295Nm
Overrunning speeds 300 min -1
Inner diameter 45mm / 50mm/ 55mm
Outer diameter 132mm
Thickness 52mm
Weight 4.6kg
Application Fishinery machinery, Reducer, household appliances
Package Carton Box
Payment terms TT, L/C, D/A, D/P, Western Union, Paypal
Delivery time 7-10 Days


Dimensions and Capacities




Type Size   Overrunning Speeds   Weight









RSBW

dH7 TKN1) nimax D L 1 F E B N L bH11
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg]
20 375 400 106 35 113 102.5 40 35 15 18 2
25 606 400 106 48 113 102.5 40 35 15 18 2.6
30 606 400 106 48 113 102.5 40 35 15 18 2.5
35M 375 400 106 35 113 102.5 40 35 15 18 2
35 606 400 106 48 113 102.5 40 35 15 18 2.4
40 1295 300 132 52 125 115 60 35 15 18 4.6
45 1295 300 132 52 125 115 60 35 15 18 4.5
50 1295 300 132 52 125 115 60 35 15 18 4.5
55 1295 300 132 52 125 115 60 35 15 18 4.4
60 2550 250 161 54 140 130 70 35 15 18 6.5
70 2550 250 161 54 140 130 70 35 15 18 6.4
80 4875 200 190 70 165 150 70 45 20 25 9.9
90 4875 200 190 70 165 150 70 45 20 25 9.8

Mounting and Coupling


Pictures

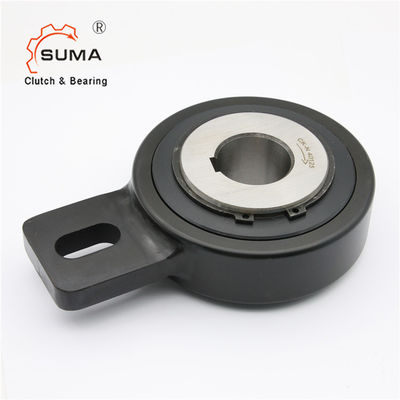

RSBW55 1295Nm One Way Backstop Clutch Bearing For Grain Silos 2

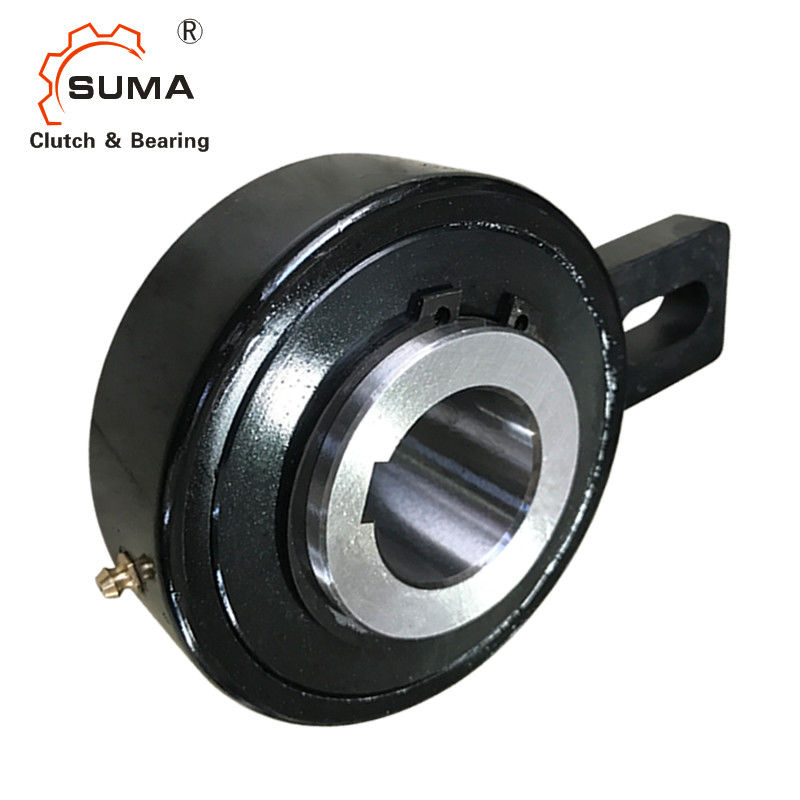

RSBW55 1295Nm One Way Backstop Clutch Bearing For Grain Silos 3



FAQ



Q: How do you pack the goods?

  • Total less than 25 KG : 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
