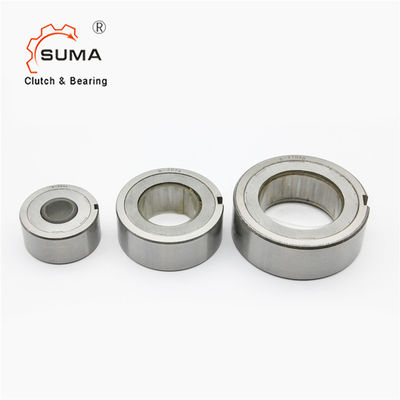

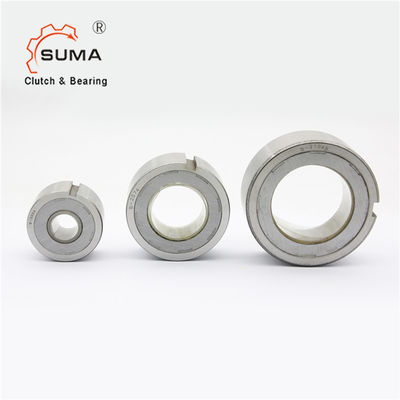

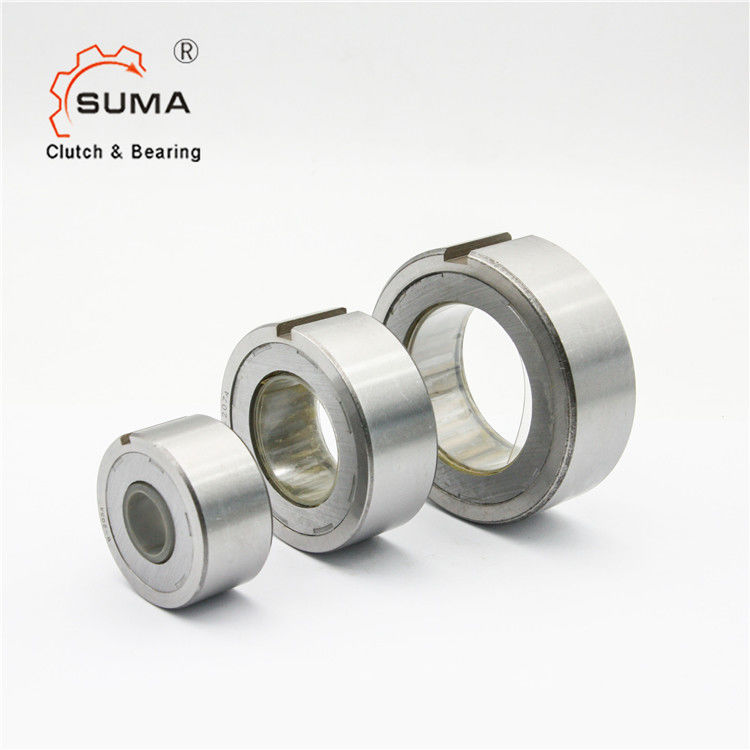

B210 One Way Cam Clutch Bearing Sprag Freewheels
Features
Type S200(B200) is a non bearing supported sprag type freewheel.
The sprags run directly on the shaft provided by the user. Bearings are required to support axial and radial loads.
Technical Datas
| Item | B210 one way bearing |
| Drag Torque | 0.2Ncm |
| Bore size (mm) | 56.109 |
| Outer race (mm) | 90 |
| Torque Capacity(Nm) | 784 |
| Max.Indexing(cycle/min) | 1200 |
| Weight (kg) | 1 |
Dimensions and Capacities
| Model |
Torque Capacity (N.m) |
Drag Torque (N.m) |
Max .Overrunning (r/min) | Max.Idexing (cycle/min) | A(+0 to -0.6) | B | Keyway | With JIS Bearing No. |
Shaft Dia. C (+0 to -0.025) |
Weight (kg) |
|
| Shaft | Outer Race | ||||||||||
| B203 | 39.2 | 0.1 | 2400 | 500 | 150 | 25 | 40(-0.014-0.039) | 4X2.5 | 6203 | 16.51 | 0.23 |
| B204 | 58.8 | 0.1 | 2400 | 500 | 150 | 25 | 47(-0.014-0.039) | 5X3 | 6204 | 18.796 | 0.34 |
| B205 | 98 | 0.2 | 1800 | 400 | 150 | 25 | 52(0.017-0.042) | 5X3 | 6205 | 23.622 | 0.45 |
| B206 | 235 | 0.2 | 1800 | 350 | 150 | 28 | 62(-0.017-0.042) | 7X4 | 6206 | 32.766 | 0.68 |
| B207 | 372 | 0.2 | 1800 | 300 | 150 | 28 | 72(-0.017—0.042) | 7X4 | 6207 | 42.088 | 0.8 |
| B208 | 549 | 0.2 | 1800 | 200 | 150 | 32 | 80(-0.017-0.042) | 10X4.5 | 6208 | 46.761 | 0.91 |
| B209 | 549 | 0.2 | 1800 | 200 | 150 | 32 | 85(-0.020-0.045) | 10X4.5 | 6209 | 46.761 | 0.95 |
| B210 | 784 | 0.29 | 1200 | 200 | 150 | 32 | 90(-0.020-0.045) | 10X4.5 | 6210 | 56.109 | 1 |
| B211 | 784 | 0.29 | 1200 | 200 | 150 | 32 | 100(-0.020-0.050) | 10X4.5 | 6211 | 56.109 | 1.4 |
| B212 | 1230 | 0.29 | 1200 | 180 | 150 | 42 | 110(-0.020-0.050) | 10X4.5 | 6212 | 70.029 | 1.8 |
| B213 | 1230 | 0.29 | 1200 | 180 | 150 | 42 | 120(-0.020-0.050) | 10X4.5 | 6213 | 70.029 | 2.3 |
| B214 | 1390 | 0.39 | 180 | 180 | 150 | 42 | 125(-0.024-0.060) | 12X4.5 | 6214 | 79.356 | 2.4 |
