HF0612 1.76Nm Drawn Cup Single Row One Way Needle Roller Bearing
  • HF0612 1.76Nm Drawn Cup Single Row One Way Needle Roller Bearing
  • HF0612 1.76Nm Drawn Cup Single Row One Way Needle Roller Bearing
  • HF0612 1.76Nm Drawn Cup Single Row One Way Needle Roller Bearing
  • HF0612 1.76Nm Drawn Cup Single Row One Way Needle Roller Bearing

HF0612 1.76Nm Drawn Cup Single Row One Way Needle Roller Bearing

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number HF0612
Product Details
Product Name:
Needle Roller Bearing HF0612
Material:
ST14
Unit Weight:
0.003Kg
Warranty:
3 Months
Overrunning Speed:
23000RPM
Torque Capacity:
1.76Nm
OEM:
Accept
Port:
Shanghai Ningbo
High Light:

HF One Way Needle Roller Bearing

,

23000RPM One Way Needle Roller Bearing

,

HF Drawn Cup Roller Clutches

Payment & Shipping Terms
Minimum Order Quantity
10
Price
USD0.18-USD0.25 PER PIECE
Packaging Details
Carton Box
Delivery Time
IN STOCK
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
100000PCS Per Month
Product Description

      HF0612 1.76Nm Drawn Cup Single Row One Way Needle Roller Bearing



Features



HF Drawn cup roller clutches:

are one-way clutches, which transmit torques in one direction ;

are available with or without an integrated bearing arrangement ;

give very precise indexing ;

allow high indexing frequencies ;

have a low overrunning frictional torque ;

are available with or without greasing ;

are particularly compact in a radial direction and therefore permit extremely compact designs ;

are suitable for housing materials made from steel, light metal or plastic ;

can be combined with drawn cup needle roller bearings with open ends HK and drawn cup needle roller bearings with closed end BK ;

have an extensive range of applications, for example as indexing clutches, back-stopping clutches and overrunning clutches .



Dimensions and Capacities

HF0612 1.76Nm Drawn Cup Single Row One Way Needle Roller Bearing 0

Shaft Dia. Bearing Designation Mass Dimensions

Permissible

Torque

Limiting Speed
Fw D C

Rotating Shaft

Min-1

Rotating Outer Ring Min-1
mm Plastic Springs Steel Springs g mm Nm rpm rpm
3 HF0306KF   0.9 3 6.5 6 0.2 36000 7000
4 HF0406KF -- 1 4 8 6 0.34 34000 8000
HF0406KFR -- 1 4 8 6 0.1 34000 8000
6 HF0608KF   2.8 6 10 8 1.5 20000 11000
HF0612KF HF0612 3 6 10 12 1.76 23000 13000
HF0612KFR HF0612R 3 6 10 12 1.76 23000 13000
  HF061210 3.5 6 12 10 3 20000 13000
8 HF0812KF HF0812 3.5 8 12 12 3.15 17000 12000
HF0812KFR HF0812R 3.5 8 12 12 4 17000 12000
-- HF061210 3.2 8 12 10 3 16000 12000
-- HF081410 3.6 8 14 10 4.6 15000 11000
-- HF081610 4.1 8 16 10 5.5 15000 11000
-- HF081412 4 8 14 12 5 16000 12000
10 HF1012KF HF1012 4 10 14 12 5.3 14000 11000
HF1012KFR HF1012R 4 10 14 12 1.5 14000 11000
12 -- HF1216 11 12 18 16 12.2 11000 8000
14 -- HF1416 13 14 20 16 17.3 9500 8000
16 -- HF1616 14 16 22 16 20.5 8500 7500
18 -- HF1816 16 18 24 16 24.1 7500 7500
20 -- HF2016 17 20 26 16 28.5 7000 6500
25 -- HF2520 30 25 32 20 66 5500 5500
30 -- HF3020 36 30 37 20 90 4500 4500
35 -- HF3520 40 35 42 20 121 3900 3900
Pictures

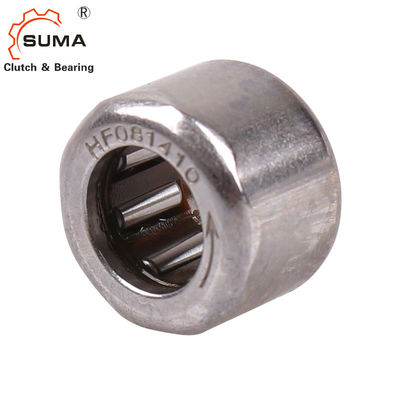

HF0612 1.76Nm Drawn Cup Single Row One Way Needle Roller Bearing 1

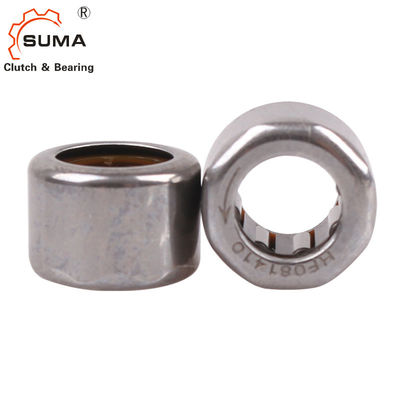

HF0612 1.76Nm Drawn Cup Single Row One Way Needle Roller Bearing 2

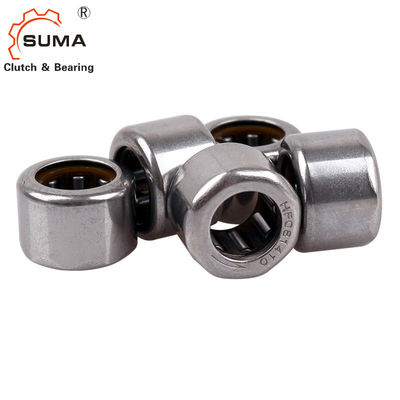

HF0612 1.76Nm Drawn Cup Single Row One Way Needle Roller Bearing 3
