KEED2 Freewheel Self-Contained Overrunning Clutch Bearing

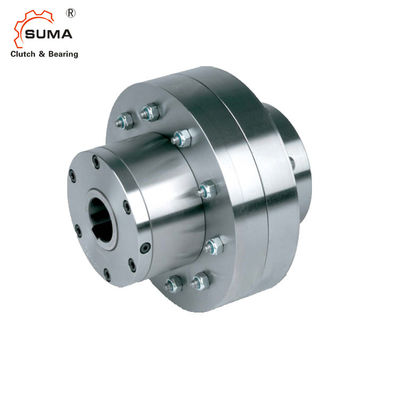

  • KEED2 Freewheel Self-Contained Overrunning Clutch Bearing

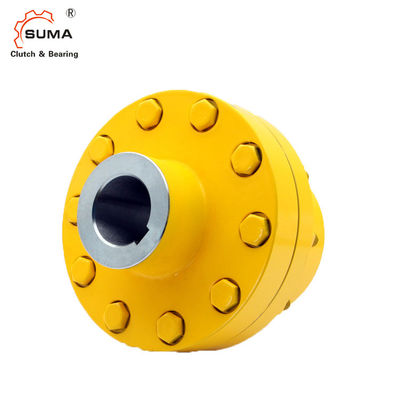

  • KEED2 Freewheel Self-Contained Overrunning Clutch Bearing

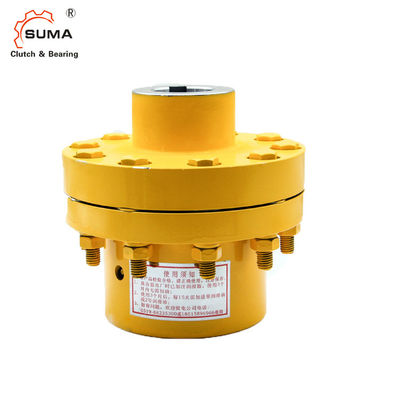

  • KEED2 Freewheel Self-Contained Overrunning Clutch Bearing

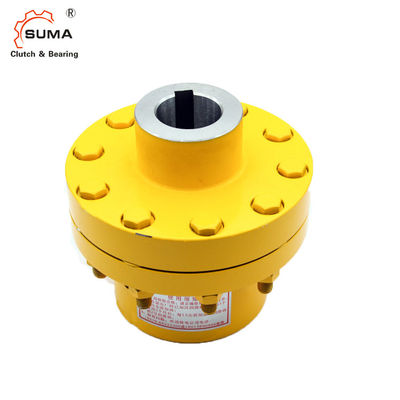

  • KEED2 Freewheel Self-Contained Overrunning Clutch Bearing

KEED2 Freewheel Self-Contained Overrunning Clutch Bearing

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number AL30 KEED2
Product Details
Prodcut Name:
Overrunning Clutch Bearing AL30 KEED2
Material:
Bearing Steel GCr15
Bore Size:
30mm
OD Size:
100mm
Warranty:
1 Year
Weight:
11Kg
OEM:
Accept
Ddlivery Time:
5-7 Days
Port:
Shanghai Ningbo
High Light:

Freewheel Overrunning Clutch Bearing

,

Self-Contained Overrunning Clutch Bearing

,

Self-Contained Overrunning Clutch

Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
USD300-USD600 PER PIECE
Packaging Details
Wooden Box
Delivery Time
7-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability
2000 PCS PER MONTH
Product Description

  KEED2 Freewheel Self-Contained Overrunning Clutch Bearing

Features

  Type AL..KEED2 is a roller type freewheel, self-contained, sealed and bearing supported, using two 160.. series bearings. Unit is delivered oil lubricated.
  This combination is used as overrunning clutch as shown overleaf. In this design, a standard AL freewheel is connected to a flexible coupling for in-line mounting.
  The KEE type is a high performance coupling used to damp torsional vibrations and to accept misalignement without excess bearing loads. D2 cover is used to close the unit. It is equipped with two screws for oil filling, drain and level. We recommend the unit is supplied assembled.
  Please specify inner race direction of rotation seen from the D2 flange. Refer to manufacturer’s catalogue to check coupling selection.

Technical Datas

Product name overrunning clutch bearing
Model AL30 KEED2
Material GCr15
Inner diameter 30mm
Outer diameter 100mm
Inner race overrunning speed 4100r/min
Outer race overrunning speed 1300r/min
Weight 11Kg
Torque Capacity 500Nm
Application Reducer, Printer machine, Texitle Machine, Belt Conveyor, Salt industry
Package Wooden box, tube, pulley, etc
Payment terms TT. L/C, D/A,D/P,Western Union,Paypal

Dimensions and Capacities

KEED2 Freewheel Self-Contained Overrunning Clutch Bearing 0

Type Size









Overrunning speeds





Weight
AL..KEED2 dH7 KEE TKN nimax1) namax2) dKH7 D L1 D6 L6
[mm]   [Nm] [min-1] [min-1] [mm] [mm] [mm] [mm] [mm] [kg]
12 2 55 2500 6000 12...25 62 42 97 35 3
15 3 122 1900 6000 16...30 68 52 112 40 4.4
20 3 122 1600 5600 16...30 75 57 112 40 4.6
25 4 288 1400 4500 20...40 90 60 130 50 6.4
30 5 500 1300 4100 20...50 100 68 160 60 11
35 6 725 1100 3800 25...65 110 74 190 75 17
40 6 1025 950 3400 25...65 125 86 190 75 19
45 6 1050 900 3200 25...65 130 86 190 75 19
50 7 1750 850 2800 30...75 150 92 225 90 31
55 8 2625 720 2650 35...90 160 104 270 100 47
60 8 2750 680 2450 35...90 170 114 270 100 49
70 10 5750 580 2150 45...110 190 134 340 140 90
80 11 8500 480 1900 55...125 210 144 380 160 107
90 12 13750 380 1700 65...140 230 158 440 180 170
100 14 20000 350 1450 75...160 270 182 500 200 230
120 16 30000 250 1250 85...180 310 202 560 220 330
150 18 43750 180 980 95...200 400 246 640 250 500
200 22 97500 120 750 125...250 520 326 880 320 965
250 28 250000 100 620 160...320 610 396 1160 400 1725
ALM..KEED2 25 4 288 1100 2800 20...40 90 60 130 50 6.4
30 5 588 1000 2500 20...50 100 68 160 60 11
35 6 838 900 2400 25...65 110 74 190 75 17

NOTE

1) Inner race overrunst

2) Outer race overruns

Keyway to DIN 6885.1

When ordering, please specify bore ø d k and direction of

rotation seen from arrow „A“: „R“ Inner race overruns in

clockwise direction, „L“ Inner race overruns in counter-

clockwise direction

» Refer to mounting and maintenance instructions

Mounting Coupling

KEED2 Freewheel Self-Contained Overrunning Clutch Bearing 1

Pictures

KEED2 Freewheel Self-Contained Overrunning Clutch Bearing 2



KEED2 Freewheel Self-Contained Overrunning Clutch Bearing 3
