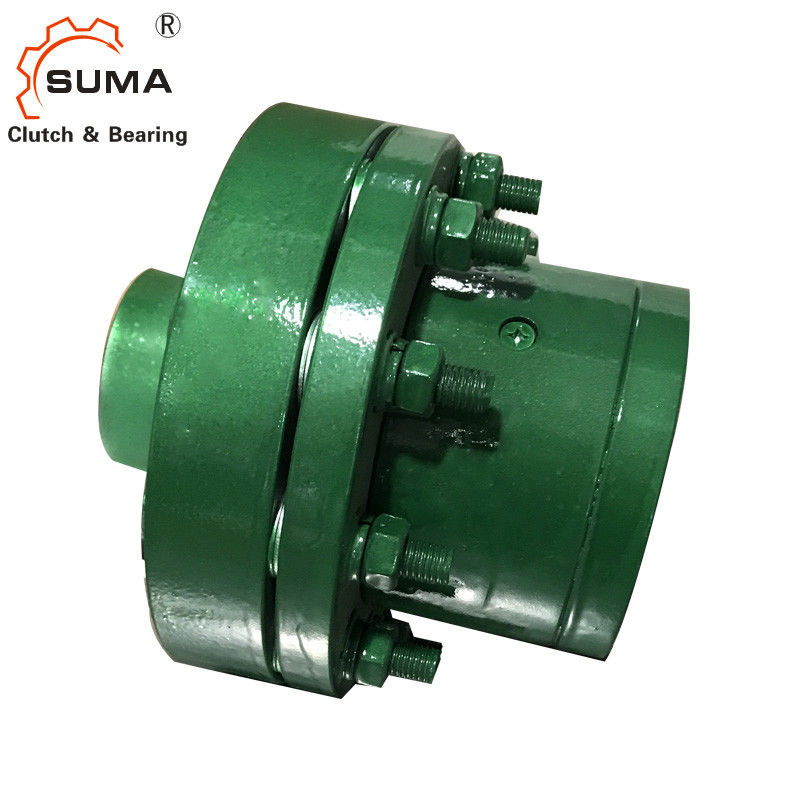

CKL-A60170 One Way Coupling Overrunning Clutch Bearing
  • CKL-A60170 One Way Coupling Overrunning Clutch Bearing
  • CKL-A60170 One Way Coupling Overrunning Clutch Bearing
  • CKL-A60170 One Way Coupling Overrunning Clutch Bearing
  • CKL-A60170 One Way Coupling Overrunning Clutch Bearing
  • CKL-A60170 One Way Coupling Overrunning Clutch Bearing

CKL-A60170 One Way Coupling Overrunning Clutch Bearing

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number CKL-A80210
Product Details
Product Name:
Overrunning Clutch Bearing CKL-A60170
Torque Capacity:
2200Nm
Rotation Speed:
578RPM
Unit Weight:
49Kg
Warranty:
1 Year
Size:
60*170*244mm
Material:
GCr15 Bearing Steel
OEM:
Accept
High Light:

CKL-A Overrunning Clutch Bearing

,

360 RPM Overrunning Clutch Bearing

,

CKL-A Overrunning Clutch

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD450-USD540 PER PIECE
Packaging Details
Wooden Case
Delivery Time
10 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

               CKL-A60170 One Way Coupling Overrunning Clutch Bearing

Features

  Type CKL-A is a sprag type freewheels,self contained,sealed and bearing supported. Units is delivered oil lubricated.
The inner race and flange are keyed to the opposite shaft.
  This combination is used as overrunning clutch and extensive used in mechanism of packing, traffic. and metallury.mine and so on.



Dimensions and Capacities

CKL-A J.jpg



Type





Normal Torque
Nm



Overrunning Speed
r/min

Dimension

mm

Weight
kg



Inner race Outer race dH7 D k (H7) D D 1 L L 1 L 2 B b n ×t n
CKL-A1252 44 2125 2100 12 12~25 52 97 90.0 35 42 13.0 2×1.0 3.0
CKL-A1568 90 1615 2100 15 15~30 68 112 110.0 40 52 18.0 3×1.4 4.4
CKL-A2075 98 1360 1960 20 15~30 75 118 114.5 40 56 14.0 3×1.4 4.6
CKL-A2590 230 1190 1610 25 20~40 90 130 127.5 50 60 17.5 4×1.8 6.4
CKL-A30100 400 1105 1470 30 20~50 100 160 146.0 60 66 20.0 5×2.3 11
CKL-A35110 580 935 1330 35 25~65 110 190 168.0 75 74 19.0 6×2.8 17
CKL-A40125 820 807.5 1190 40 25~65 125 190 178.0 75 86 17.0 6×2.8 19
CKL-A45130 840 765 1120 45 25~65 130 190 178.0 75 86 17.0 6×2.8 19
CKL-A48150 1400 730 1000 48 25~65 150 225 207.0 90 88 25.0 14×3.8 31.5
CKL-A50150 1400 722.5 980 50 30~75 150 225 207.0 90 92 25.0 14×3.8 31
CKL-A55160 1600 612 910 55 35~90 160 270 233.5 100 104 29.5 16×4.3 47
CKL-A60170 2200 578 840 60 35~90 170 270 244.0 94 114 30.0 18×4.4 49
CKL-A70170 2200 578 840 70 35~90 170 270 267 117 114 30.0 20×4.9 48
CKL-A70190 4500 493 770 70 45~110 190 340 312.5 140 134 38.5 20×4.9 90
CKL-A75190 4500 493 770 75 50~120 190 340 312.5 140 134 35.0 20×4.9 88
CKL-A80210 6800 408 630 80 55~125 210 380 340.0 160 142 35.0 22×5.4 107
CKL-A90230 11000 323 595 90 65~140 230 440 369.0 160 159 50.0 25×6.4 170
CKL-A95230 11000 323 595 95 70~145 230 440 379.0 160 175 35.0 25×5.4 165
CKL-A100270 16000 297.5 525 100 76~160 270 500 422.5 200 182 40.5 28×6.4 230
CKL-A75170 2200 578 840 75 35~90 170 270 291 140 114 30.0 20×4.9 46



Mounting Example

AL..KEED2 .jpg

Product Picture:

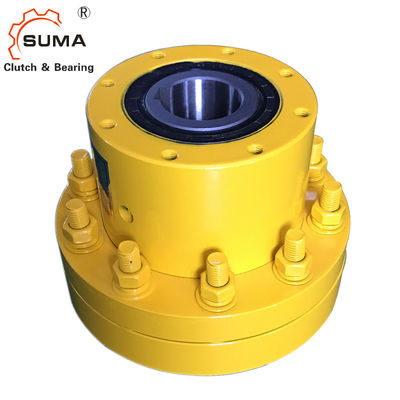

CKL-A60170 One Way Coupling Overrunning Clutch Bearing 2

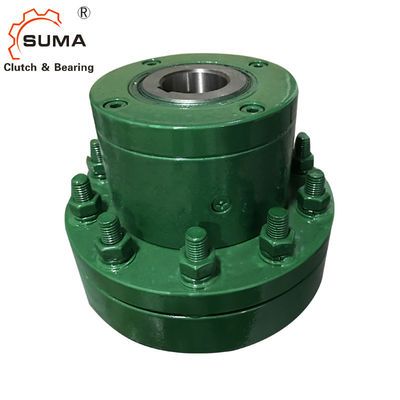

CKL-A60170 One Way Coupling Overrunning Clutch Bearing 3

Application

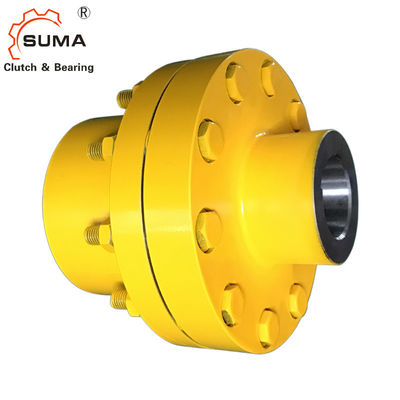

CKL-A60170 One Way Coupling Overrunning Clutch Bearing 5
