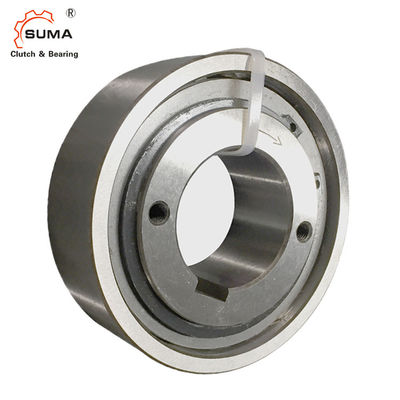

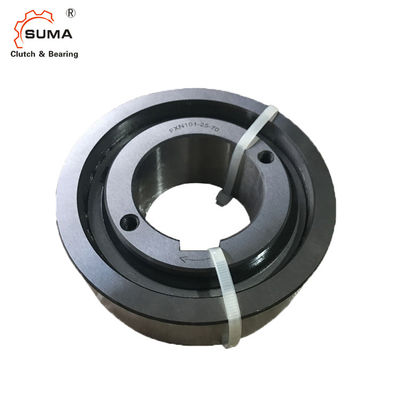

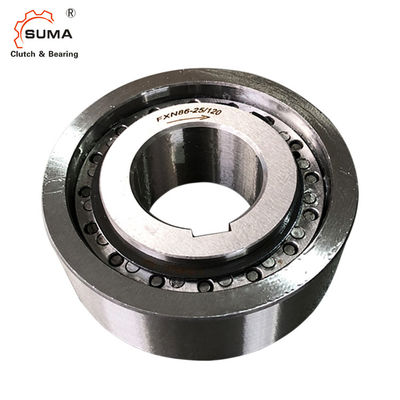

FXN51-25/85 Internal Freewheels Overrunning Clutch Bearing

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number FXN51-25/85
Product Details
Product Name:
Overrunning Clutch FXN51-25/85
Function:
Overrunning / Backstopping
Material:
Bearing Steel GCr15
Bore Range:
25mm
Torque:
560Nm
Rotation Speed:
5000RPM
Outer Dia.:
85mm
OEM:
Accept
High Light:

FXN51-25/85 Overrunning Clutch Bearing

,

Internal Freewheels Overrunning Clutch Bearing

,

Internal Freewheels Clutch Overrunning

Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
USD50-USD150 PER PIECE
Packaging Details
Carton Box / Wooden Box
Delivery Time
7-15 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union,Paypal
Supply Ability
2000 PCS PER MONTH
Product Description

FXN51-25/85 Internal Freewheels Overrunning Clutch Bearing

Feature

  Internal Freewheels FXN are sprag freewheels without bearing support and with sprag lift-off X. The sprag lift-off X ensures a wear-free free - wheeling operation when the inner ring rotates at high speed. The outer ring is pressed into the customer hous ing. This makes compact, space-saving fitting solutions possible. The freewheels FXN are used as:

Backstops

Overrunning Clutches

  for applications with high speed freewheeling operation and when used as an overrunning clutch with low speed driving operation. Nominal torques up to 20 500 Nm. The torque is transmitted on the outer ring by press fit. Bores up to 130 mm. Many standard bores are available.



Dimension and Capacity


FXN51-25/85 Internal Freewheels Overrunning Clutch Bearing 1

The maximum transmissible torque is 2 times the specified nominal torque. See page 14 for determination of selection torque.

The theoretical nominal torque applies only for ideal concentricity between the inner and outer ring. In practice, the concentricity is affected by the bearing play and centering errors of the neigh bouring parts. Then the nominal torques specified in the table apply, whilst taking into consideration the existing run out (T.I.R.).

Higher speeds upon request.

Freewheel size mm mm Bore d mm mm max. mm B D mm F J K min. mm L

Weight

kg

Standard mm mm mm mm
mm mm
FXN31 - 17/60 20*           20* 25 60 P6 55 31 85 24 0,3
FXN31 - 17/62 20*           20* 25 62 P6 55 31 85 24 0,4
FXN38 - 17/70 25*           25* 25 70 P6 62 38 90 24 0,4
FXN46 - 25/80 25           30 35 80 P6 70 46 95 35 0,8
FXN51 - 25/85 25 30 35       36 35 85 P6 75 51 105 35 0,8
FXN56 - 25/90 35           40 35 90 P6 80 56 110 35 0,9
FXN61 - 19/95 30 35 40       45* 26 95 P6 85 61 120 25 0,8
FXN61 - 19/106 30 35 40       45* 25 106 H7 85 61 120 25 1,2
FXN66 - 25/100 35 40 45       48* 30 100 P6 90 66 132 35 1,1
FXN66 - 25/110 35 40 45       48* 40 110 P6 90 66 132 35 1,8
FXN76 - 25/115 45 55         60* 40 115 P6 100 76 140 35 1,7
FXN76 - 25/120 45 55         60* 32 120 J6 100 76 140 35 1,8
FXN86 - 25/125 40 45 50 60 65   70* 40 125 P6 110 86 150 40 2,3
FXN86 - 25/130 40 45 50 60 65   70* 40 130 P6 110 86 150 40 2,6
FXN 101 - 25/140 55 70         75 45 140 P6 125 101 175 50 3,1
FXN 101 - 25/149 70           75 62 149 H6 125 101 175 62 4,2
FXN 101 - 25/150 55 70         75 45 150 P6 125 101 175 50 3,6
FXN 85 - 40/140 45 50 60 65     65 45 140 P6 125 85 175 60 3,2
FXN 85 - 40/150 45 50 60 65     65 45 150 P6 125 85 175 60 4,2
FXN 100 - 40/160 45 50 55 60 70 75 75 50 160 P6 140 100 190 60 5,1
FXN 105 - 50/165 80           80 62 165 P6 145 105 195 62 5,8
FXN 120 - 50/198 60 65 70 75 80 95 95 70 198 H6 160 120 210 70 8,6
FXN 140 - 50/215 65 90 100 110     110 69 215 J6 180 140 245 70 14,0
FXN 170 - 63/258 70 85 100 120     130 80 258 H6 210 170 290 80 21,0

Notes:

1. T max = 2 × T KN

2. Inner race overruns

3. Outer race overruns
Keyway to DIN 6885.1

Keyway according to DIN 6885, page 1 • Tolerance of keyway width JS10.

* Keyway according to DIN 6885, page 3 • Tolerance of keyway width JS10.

Mounting Example

FXN51-25/85 Internal Freewheels Overrunning Clutch Bearing 2

Internal Freewheel FXN 38 - 17/70 NX as a backstop, arranged in a housing adapter to attach to an electric motor. The thin outer ring that is pressed into the housing enables a space-efficient fitting solution. Due to the high shaft speeds in normal operation (freewheeling o peration), the sprag lift-off X ensures a contactless and hence wear-free continuous oper ation.

FXN51-25/85 Internal Freewheels Overrunning Clutch Bearing 3

Internal Freewheel FXN 66 - 25/100 NX as an overrunning clutch in the creep drive of a textile machine. The freewheel installation is compactly solved by means of the thin outer ring that is pressed into the worm wheel. During setup, the machine is driven by the worm gear and the freewheel that is working in driving operation. In normal operation (freewheeling oper ation), the inner ring that is located on the high speed main drive shaft overruns and automatically disengages the creep drive. With the high overrunning speed of the inner ring, the type with sprag lift-off X is used; the sprags work in freewheeling operation without contact and hence are wear-free.

FXN51-25/85 Internal Freewheels Overrunning Clutch Bearing 4

  Internal Freewheel FXN 85 - 40/140 MX as a backstop fitted to the end of the first inter mediate shaft of a spur gearbox in the drive of an inclined conveyor belt. In the case of a motor stop the conveyor belt must be held securely so that the conveyor goods do not pull the belt backwards and possibly cause serious damage. Due to the high shaft speeds in normal oper ation (free wheeling operation), the sprag lift-off X ensures a contactless and hence wear-free c ontinuo us operation.



  Internal Freewheels FXN are without bearing support. Concentric alignment of inner and outer ring must be provided by the customer.
The permissible run out (T.I.R.) must be observed. The torque is transmitted on the outer ring by press fit. In order to transmit the torques speci- fied in the table, the outer ring must be accommodated in a housing with an external diameter K. The housing is made of steel or grey cast iron in minimum quality GG-20. When using other housing materials or smaller external diameters, we urge you to contact us regarding the transmissible torque. The tolerance of the housing bore is specified in the table under dimension D. The tolerance of the shaft must be ISO h6 or j6.

Lubrication
At speeds in excess of the sprag lift-off speed, no special lubrication is required; the freewheel functions maintenance-free. When operating below the sprag lift-off speed, an oil lubrication of the specified quality must be provided.
Example for ordering
Freewheel size FXN 61 - 19/95, type with sprag
lift-off X and 35 mm bore:
• FXN 61-19/95 NX, d = 35 mm
