RSXM Backstop One Way Sprag Clutch Bearing
  • RSXM Backstop One Way Sprag Clutch Bearing
  • RSXM Backstop One Way Sprag Clutch Bearing
  • RSXM Backstop One Way Sprag Clutch Bearing
  • RSXM Backstop One Way Sprag Clutch Bearing

RSXM Backstop One Way Sprag Clutch Bearing

Place of Origin CHINA
Brand Name SUMA
Certification ISO SGS
Model Number RSXM46
Product Details
Product Name:
Sprag Clutch Bearing RSXM46
Material:
GCr15 Bearing Steel
Size:
25.3*95*35mm
Torque Capacity:
425Nm
Rotation Speed:
13500RPM
Warranty:
1 Year
Unit Weight:
1.4Kg
OEM:
Accept
High Light:

1.4KG Sprag Clutch Bearing

,

One Way Sprag Clutch Bearing

,

Backstop Overrunning Clutch

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD260-USD350 PER PIECE
Packaging Details
Wooden Case
Delivery Time
7-10 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability
1000PCS Per Month
Product Description

              RSXM 1.4KG Backstop One Way Sprag Clutch Bearing

Features

  The series RSXM completes teh small to medium backstop range, which commenced with the highly successful RSCI programme. Type RSXM is a centrifugal lift off sprag type freewheel with the inner race rotating. Only the inner race is designed for freewheeling. It is a non self-supported type.Bearings must be provided to ensure concentricity of the inner and outer races and support axial and radial loads, as shown overleaf. Concentricity and run-out limits must be observed.
  The RSXM type accepts all types of lubricant currently used in power transmission equipment. It is possible to mount these freewheels directly in gear-boxes without seperate lubrication. An oil mist ist generally sufficient. Grease lubrication may be acceptable if the unit works mostly in overrunning condition, as on E-motors. When used as a backstop, it must be checked that the overrun-ning speed will not go below the minimum speed given in the characteristic table.

Dimension and Capacity



Type Bore dia. Torque Overrunning speeds





RSXM dH7 TKN1) nmax2) nimin3) nimax4) D5) D1h6 D2H7 L Weight
[mm] [Nm] [min-1 ] [min-1 ] [min-1 ] [mm] [mm] [mm] [mm] [kg]
31 20 100 340 820 20000 85 31 55 24 0.75
38 20.25 135 320 770 18500 90 38 62 24 0.95
46 25.3 425 300 720 13500 95 46 70 35 1.4
51 30.35 525 220 525 12500 105 51 75 35 1.8
56 35.4 625 210 500 11500 110 56 80 35 1.8
61 35.4 420 265 640 14000 120 61 85 25 1.8
66 35.40.45 850 200 480 10000 132 66 90 35 2.7
76 40.45.50 1100 190 460 9000 140 76 100 35 3.1
86 45.5 1450 180 440 8000 150 86 110 40 4.2
101 45.55.60.70 1950 175 420 6500 175 101 125 50 7.3

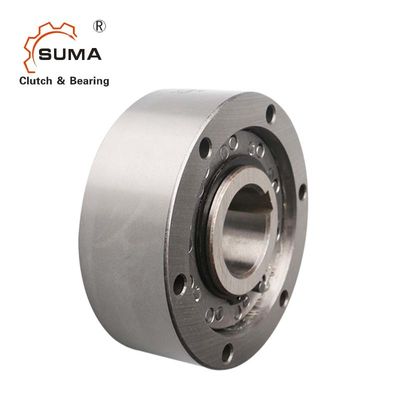

RSXM Backstop One Way Sprag Clutch Bearing 0

NOTES

1) T max = 2 × T KN » Refer to Selection page 10 to 13

2) This maximum allowable torque transmission speed n max must not be exceeded when transmitting torque.

3) This minimum allowable overrunning speed n imin should not be rdeuced under continuous operation. Possible reduction of this minimum speed in request.

4) Inner race overruns. Keyway to DIN 6885.1

5) Tolerance +1 » Refer to mounting and maintenance instructions

Mounting

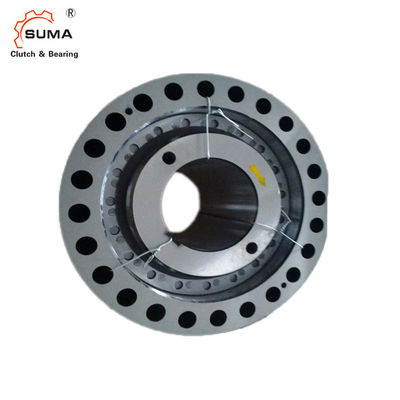

RSXM Backstop One Way Sprag Clutch Bearing 1

Pictures

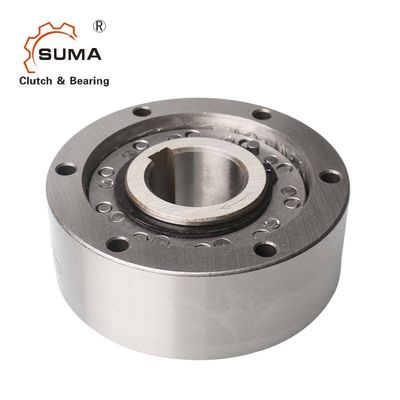

RSXM Backstop One Way Sprag Clutch Bearing 2

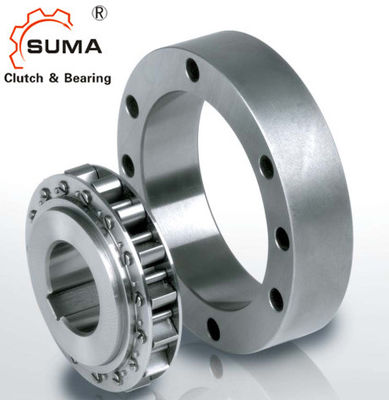

RSXM Backstop One Way Sprag Clutch Bearing 3
