| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SUMA |
| Certification: | ISO SGS |
| Model Number: | DC3175(3C) |
| Minimum Order Quantity: | 1 |
| Price: | USD6.5-USD8 PER PIECE |
| Packaging Details: | Carton Box |
| Delivery Time: | 3-5 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, Paypal |
| Supply Ability: | 10000PCS Per Month |
| Product Name: | One Way Clutch Bearing DC3175(3C) | Material: | GCr15 Bearing Steel |
|---|---|---|---|
| Torque Capacity: | 159Nm | Rotation Speed: | 6000RPM |
| Unit Weight: | 0.06Kg | Warranty: | 1 Year |
| Size: | 31.75*48.41*13.5mm | OEM: | Accept |
| High Light: | DC Sprag Type Clutch,2600RPM Sprag Type Clutch,Extension One Way Sprag Clutch |
||

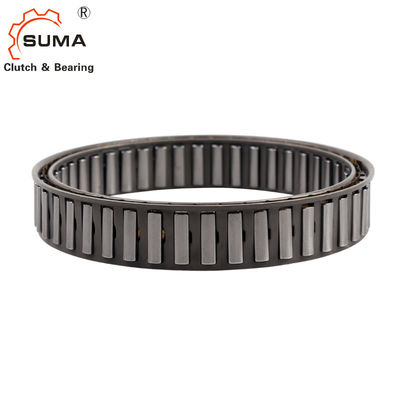

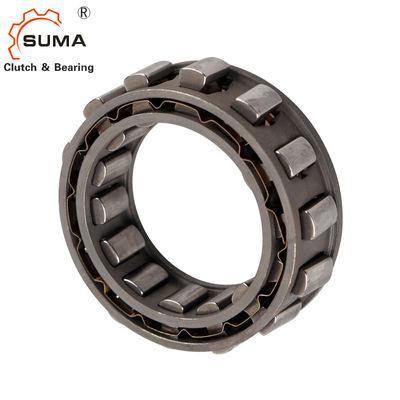

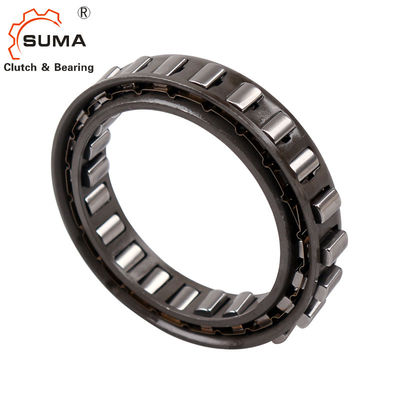

DC Sprag Type Clutch
Brief Introduction
Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The DC type version-N accepts all types of lubricants currently used in the power transmission equipement.
The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width “e”, without any recess, to ensure the freewheel functions correctly as shown on following pages.
Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below. Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.
Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races: 0,007 mm for 25 mm width.
Dimensions and Capacities
|
Size
|
TKN1) |
Overrunning speeds |
Sprag space
|
NO. of clips
|
No. of sprags |
Weight | ||||||
| nimax2) | namax3) | Øa+0.008 -0.005 |
Øc± 0.013 | emin | Ødmin | Øbmax | ||||||
| [Nm] | [min-1] | [min -1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |||
| DC2222G-N | 63 | 8600 | 4300 | 22.225 | 38.885 | 8.33±0.075 | 10 | 50 | 15 | – | 12 | 0.03 |
| DC2776-N | 119 | 6900 | 3400 | 27.762 | 44.422 | 8.33±0.075 | 13.5 | 58 | 18 | – | 14 | 0.055 |
| DC3034-N | 124 | 6300 | 3100 | 30.34 | 47 | 8.33±0.075 | 13.5 | 62 | 20 | – | 14 | 0.06 |
| DC3175(3C)-N | 159 | 6000 | 3000 | 31.75 | 48.41 | 8.33±0.075 | 13.5 | 63 | 21 | 3 | 16 | 0.06 |
| DC3809A-N | 275 | 5000 | 2500 | 38.092 | 54.752 | 8.33±0.075 | 16 | 71 | 25 | – | 18 | 0.085 |
| DC4127(3C)-N | 224 | 4600 | 2300 | 41.275 | 57.935 | 8.33±0.075 | 13.5 | 75 | 27 | 3 | 18 | 0.09 |
| DC4445A-N | 363 | 4300 | 2100 | 44.45 | 61.11 | 8.33±0.1 | 16 | 79 | 29 | – | 20 | 0.095 |
| DC4972(4C)-N | 306 | 3800 | 1900 | 49.721 | 66.381 | 8.33±0.1 | 13.5 | 86 | 33 | 4 | 22 | 0.1 |
| DC5476A-N | 525 | 3500 | 1700 | 54.765 | 71.425 | 8.33±0.1 | 16 | 92 | 36 | – | 24 | 0.11 |
| DC5476A(4C)-N | 525 | 3500 | 1700 | 54.765 | 71.425 | 8.33±0.1 | 16 | 92 | 36 | 4 | 24 | 0.13 |
| DC5476B(4C)-N | 769 | 3500 | 1700 | 54.765 | 71.425 | 8.33±0.1 | 21 | 92 | 36 | 4 | 24 | 0.18 |
| DC5476C(4C)-N | 990 | 3500 | 1700 | 54.765 | 71.425 | 8.33±0.1 | 25.4 | 92 | 36 | 4 | 24 | 0.2 |
| DC5776A-N | 604 | 3300 | 1600 | 57.76 | 74.42 | 8.33±0.1 | 16 | 98 | 38 | – | 26 | 0.11 |
| DC6334B-N | 806 | 3000 | 1500 | 63.34 | 80 | 8.33±0.1 | 21 | 104 | 42 | – | 26 | 0.175 |
| DC7221(5C)-N | 675 | 2600 | 1300 | 72.217 | 88.877 | 8.33±0.1 | 13.5 | 115 | 48 | 5 | 30 | 0.14 |
| DC7221B-N | 1279 | 2600 | 1300 | 72.217 | 88.877 | 8.33±0.1 | 21 | 115 | 48 | – | 30 | 0.185 |
| DC7221B(5C)-N | 1279 | 2600 | 1300 | 72.217 | 88.877 | 8.33±0.1 | 21 | 115 | 48 | 5 | 30 | 0.21 |
| DC7969C(5C)-N | 2038 | 2400 | 1200 | 79.698 | 96.358 | 8.33±0.1 | 25.4 | 124 | 53 | 5 | 34 | 0.28 |
| DC8334C-N | 2055 | 2300 | 1100 | 83.34 | 100.000 | 8.33±0.1 | 25.4 | 132 | 55 | – | 34 | 0.27 |
| DC8729A-N | 1250 | 2200 | 1100 | 87.29 | 103.96 | 8.33±0.1 | 16 | 134 | 58 | – | 34 | 0.165 |
| DC10323A(5C)*-N | 1612 | 1800 | 900 | 103.231** | 119.891 | 8.33±0.1 | 16 | 155 | 68 | 5 | 40 | 0.205 |
| DC12334C*-N | 4800 | 1500 | 750 | 123.340** | 140.000 | 8.33±0.1 | 25.4 | 184 | 80 | – | 50 | 0.4 |
| DC12388C(11C) | 4875 | 1500 | 750 | 123.881 | 142.88 | 9.50±0.1 | 25.4 | 186 | 80 | 11 | 44 | 0.4 |
NOTES
1) T max = 2 × T KN
» Refer to Selection page 12 to 19
2) Inner race overruns
3) Outer race overruns
*) The inner cage centering flange is on the opposite
side
**) Extension of tolerance to ± 0,013 permissible
Mounting Example
